Documentation for Standards for Technology in Automotive Retail
Definition Type: ComplexType
Name: BankType
Namespace: http://www.starstandard.org/STAR/5
Containing Schema: DeprecatedComponents.xsd
Abstract
Documentation:
Deprecated: Use OrganizationABIEType

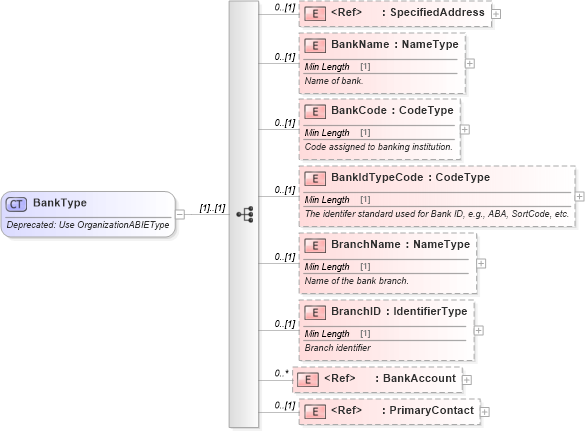

Collapse XSD Schema Diagram:
Drilldown into PrimaryContact in schema components_xsd Drilldown into BankAccount in schema deprecatedcomponents_xsd Drilldown into BranchID in schema deprecatedcomponents_xsd Drilldown into BranchName in schema deprecatedcomponents_xsd Drilldown into BankIdTypeCode in schema deprecatedcomponents_xsd Drilldown into BankCode in schema deprecatedcomponents_xsd Drilldown into BankName in schema deprecatedcomponents_xsd Drilldown into SpecifiedAddress in schema components_xsdXSD Diagram of BankType in schema deprecatedcomponents_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:complexType name="BankType">
    <xsd:annotation>
        <xsd:documentation>Deprecated: Use OrganizationABIEType</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element minOccurs="0" ref="SpecifiedAddress">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Definition xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Geographic definition of a metropolitan or suburban area</ccts:Definition>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="BankName" type="udt:NameType">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Definition xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Name of bank.</ccts:Definition>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="BankCode" type="udt:CodeType">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Definition xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Code assigned to banking institution.</ccts:Definition>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="BankIdTypeCode" type="udt:CodeType">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Definition xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">The identifer standard used for Bank ID, e.g., ABA, SortCode, etc.</ccts:Definition>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="BranchName" type="udt:NameType">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Definition xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Name of the bank branch.</ccts:Definition>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="BranchID" type="udt:IdentifierType">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Definition xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Branch identifier</ccts:Definition>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="unbounded" minOccurs="0" ref="BankAccount">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Definition xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Bank account information</ccts:Definition>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" ref="PrimaryContact">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Definition xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Organizational Party contact.</ccts:Definition>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
SpecifiedAddress star:SpecifiedAddress 0 (1)
BankName star:BankName 0 (1)
BankCode star:BankCode 0 (1)
BankIdTypeCode star:BankIdTypeCode 0 (1)
BranchName star:BranchName 0 (1)
BranchID star:BranchID 0 (1)
BankAccount star:BankAccount 0 unbounded
PrimaryContact star:PrimaryContact 0 (1)
Collapse Derivation Tree:
Collapse References:
star:Bank
