Documentation for Standards for Technology in Automotive Retail
Definition Type: Element
Name: Basis
Namespace: http://www.openapplications.org/oagis/9
Type: oagis:AllowanceChargeBasisType
Containing Schema: Components.xsd
Abstract
Documentation:
Indicates the base amount from which the charge/allowance is derived.

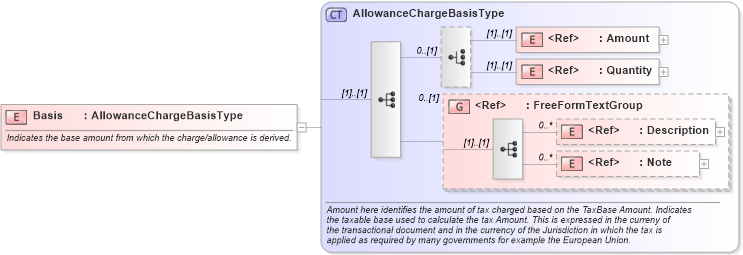

Collapse XSD Schema Diagram:
Drilldown into Note in schema fields_xsd1 Drilldown into Description in schema fields_xsd1 Drilldown into FreeFormTextGroup in schema meta_xsd1 Drilldown into Quantity in schema fields_xsd1 Drilldown into Amount in schema fields_xsd1 Drilldown into AllowanceChargeBasisType in schema components_xsd1XSD Diagram of Basis in schema components_xsd1 (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:element name="Basis" type="AllowanceChargeBasisType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">
            Indicates the base amount from which the charge/allowance is derived.
         </xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Amount oagis:Amount (1) (1)
Quantity oagis:Quantity (1) (1)
Description oagis:Description 0 unbounded
Note oagis:Note 0 unbounded
<xs:group> oagis:FreeFormTextGroup 0 (1)
Collapse Derivation Tree:
