Documentation for Standards for Technology in Automotive Retail
Definition Type: Element
Name: BOD
Namespace: http://www.openapplications.org/oagis/9
Type: oagis:BODType
Containing Schema: BOD.xsd
Abstract
Documentation:
The outcome of processing a specific BOD. Describes overall/summary outcome, plus the outcome of processing each noun of the BOD. Includes noun-specific error and/or warning messaages encountered during processing. May include summary and/or roll-up messages at the BOD level.

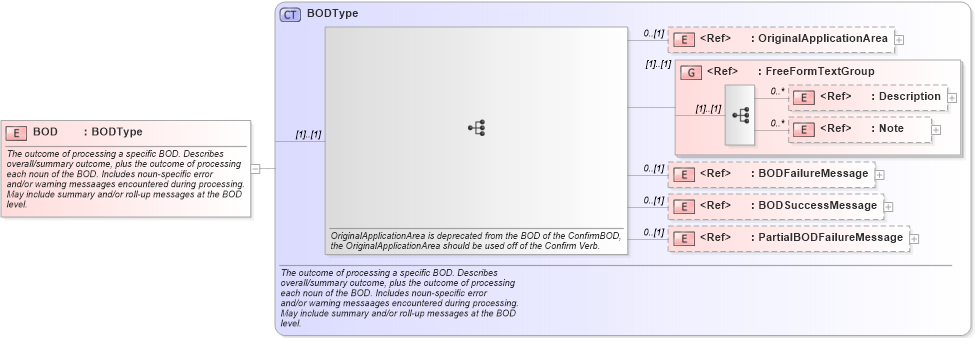

Collapse XSD Schema Diagram:
Drilldown into PartialBODFailureMessage in schema meta_xsd1 Drilldown into BODSuccessMessage in schema meta_xsd1 Drilldown into BODFailureMessage in schema meta_xsd1 Drilldown into Note in schema fields_xsd1 Drilldown into Description in schema fields_xsd1 Drilldown into FreeFormTextGroup in schema meta_xsd1 Drilldown into OriginalApplicationArea in schema meta_xsd Drilldown into BODType in schema bod_xsdXSD Diagram of BOD in schema bod_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:element name="BOD" type="BODType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">
				The outcome of processing a specific BOD. Describes
				overall/summary outcome, plus the outcome of processing
				each noun of the BOD. Includes noun-specific error
				and/or warning messaages encountered during processing.
				May include summary and/or roll-up messages at the BOD
				level.
			</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
OriginalApplicationArea star:OriginalApplicationArea 0 (1)
Description oagis:Description 0 unbounded
Note oagis:Note 0 unbounded
BODFailureMessage oagis:BODFailureMessage 0 (1)
BODSuccessMessage oagis:BODSuccessMessage 0 (1)
PartialBODFailureMessage oagis:PartialBODFailureMessage 0 (1)
<xs:group> oagis:FreeFormTextGroup (1) (1)
Collapse Derivation Tree:
