Definition Type: ComplexType
Name: CalculationABIEType
Namespace: http://www.openapplications.org/oagis/9
Containing Schema: Components.xsd
Abstract
Documentation:
CalculationABIEType is logically derived fom the UN/CEFACT TBG 17 ABIE CalculationType, which is defined in the Reusabale Aggregate Business Information Enitity (RUABIE) XML Schema file.

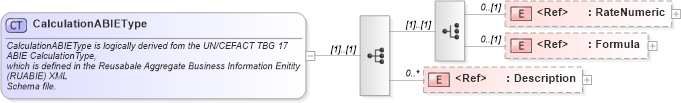

Collapse XSD Schema Diagram:
Drilldown into Description in schema fields_xsd1 Drilldown into Formula in schema fields_xsd1 Drilldown into RateNumeric in schema fields_xsd1XSD Diagram of CalculationABIEType in schema components_xsd1 (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:complexType name="CalculationABIEType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">
            CalculationABIEType is logically derived fom the UN/CEFACT TBG 17 ABIE CalculationType,
            which is defined in the Reusabale Aggregate Business Information Enitity (RUABIE) XML
            Schema file.
         </xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:choice>
            <xsd:element minOccurs="0" ref="RateNumeric" />
            <xsd:element minOccurs="0" ref="Formula" />
        </xsd:choice>
        <xsd:element maxOccurs="unbounded" minOccurs="0" ref="Description" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
RateNumeric oagis:RateNumeric 0 (1)
Formula oagis:Formula 0 (1)
Description oagis:Description 0 unbounded
Collapse Derivation Tree:
Collapse References:
oagis:CalculationType
