Definition Type: Element
Name: Cancel
Namespace: http://www.openapplications.org/oagis/9
Type: oagis:CancelType
Containing Schema: Meta.xsd
Abstract
Documentation:
The Cancel verb is used when the sender of the BOD is not the owner of the data, but is sending a request for the document to be canceled.An example is the Cancel PO where the business implications must be calculated and a simple data processing term such as delete can not fully convey the business meaning and required processing associated with the meaning.

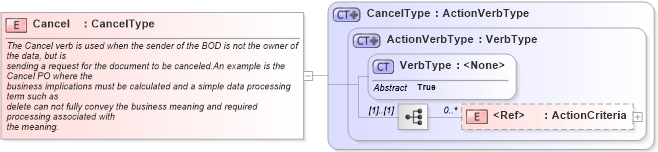

Collapse XSD Schema Diagram:
Drilldown into ActionCriteria in schema meta_xsd1 Drilldown into VerbType in schema meta_xsd1 Drilldown into ActionVerbType in schema meta_xsd1 Drilldown into CancelType in schema meta_xsd1XSD Diagram of Cancel in schema meta_xsd1 (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:element name="Cancel" type="CancelType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9.0">
            The Cancel verb is used when the sender of the BOD is not the owner of the data, but is
            sending a request for the document to be canceled.An example is the Cancel PO where the
            business implications must be calculated and a simple data processing term such as
            delete can not fully convey the business meaning and required processing associated with
            the meaning.
         </xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ActionCriteria oagis:ActionCriteria 0 unbounded
Collapse Derivation Tree:
