Definition Type: ComplexType
Name: CardType
Namespace: http://www.openapplications.org/oagis/9/reusableaggregatecorecomponentSchemaModule/0.1
Containing Schema: ReusableAggregateCoreComponent.xsd
Abstract
Collapse XSD Schema Diagram:

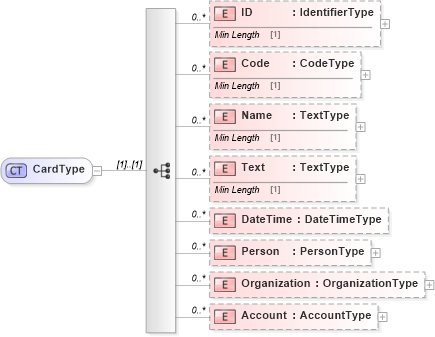

Drilldown into Account in schema reusableaggregatecorecomponent_xsd Drilldown into Organization in schema reusableaggregatecorecomponent_xsd Drilldown into Person in schema reusableaggregatecorecomponent_xsd Drilldown into DateTime in schema reusableaggregatecorecomponent_xsd Drilldown into Text in schema reusableaggregatecorecomponent_xsd Drilldown into Name in schema reusableaggregatecorecomponent_xsd Drilldown into Code in schema reusableaggregatecorecomponent_xsd Drilldown into ID in schema reusableaggregatecorecomponent_xsdXSD Diagram of CardType in schema reusableaggregatecorecomponent_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:complexType name="CardType">
    <xsd:sequence>
        <xsd:element name="ID" type="udt:IdentifierType" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element name="Code" type="udt:CodeType" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element name="Name" type="udt:TextType" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element name="Text" type="udt:TextType" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element name="DateTime" type="udt:DateTimeType" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element name="Person" type="rcm:PersonType" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element name="Organization" type="rcm:OrganizationType" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element name="Account" type="rcm:AccountType" minOccurs="0" maxOccurs="unbounded" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ID rcm:ID 0 unbounded
Code rcm:Code 0 unbounded
Name rcm:Name 0 unbounded
Text rcm:Text 0 unbounded
DateTime rcm:DateTime 0 unbounded
Person rcm:Person 0 unbounded
Organization rcm:Organization 0 unbounded
Account rcm:Account 0 unbounded
Collapse Derivation Tree:
Collapse References:
rcm:Card
