Definition Type: ComplexType
Name: CauseType
Namespace: http://www.openapplications.org/oagis/9
Containing Schema: Components.xsd
Abstract
Documentation:
This identifies a possible cause of a particular problem.

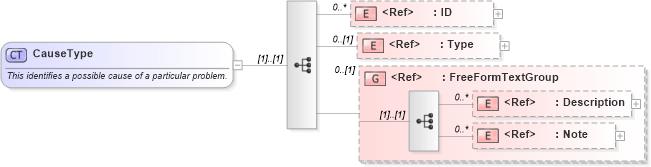

Collapse XSD Schema Diagram:
Drilldown into Note in schema fields_xsd1 Drilldown into Description in schema fields_xsd1 Drilldown into FreeFormTextGroup in schema meta_xsd1 Drilldown into Type in schema fields_xsd1 Drilldown into ID in schema fields_xsd1XSD Diagram of CauseType in schema components_xsd1 (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:complexType name="CauseType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">
            This identifies a possible cause of a particular problem.
         </xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element maxOccurs="unbounded" minOccurs="0" ref="ID">
            <xsd:annotation>
                <xsd:documentation source="http://www.openapplications.org/oagis/9">
                  This is an identifier of a Cause associated with a problem
               </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" ref="Type">
            <xsd:annotation>
                <xsd:documentation source="http://www.openapplications.org/oagis/9">
                  This is a grouping of the failurecause into different types
               </xsd:documentation>
                <xsd:documentation source="http://www.openapplications.org/oagis/9">
                  This is a classification or grouping of the failure id into different categories
               </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:group minOccurs="0" ref="FreeFormTextGroup" />
        <!-- <xsd:element ref="UserArea" minOccurs="0" /> -->
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ID oagis:ID 0 unbounded
Type oagis:Type 0 (1)
Description oagis:Description 0 unbounded
Note oagis:Note 0 unbounded
<xs:group> oagis:FreeFormTextGroup 0 (1)
Collapse Derivation Tree:
Collapse References:
oagis:Cause
