Definition Type: Element
Name: Communication
Namespace: http://www.openapplications.org/oagis/9
Type: oagis:CommunicationType
Containing Schema: Components.xsd
Abstract
Collapse XSD Schema Diagram:

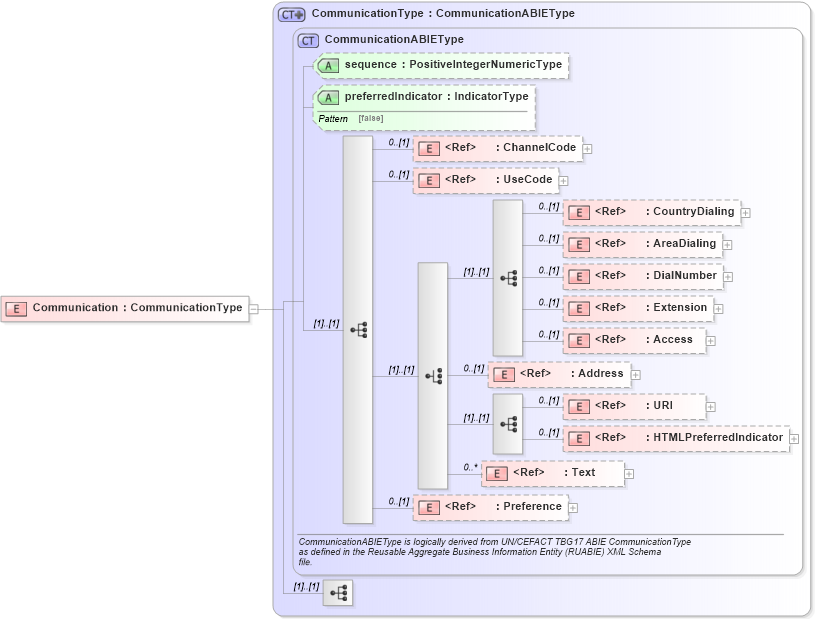

Drilldown into Preference in schema components_xsd1 Drilldown into Text in schema fields_xsd1 Drilldown into HTMLPreferredIndicator in schema fields_xsd1 Drilldown into URI in schema fields_xsd1 Drilldown into Address in schema components_xsd1 Drilldown into Access in schema fields_xsd1 Drilldown into Extension in schema fields_xsd1 Drilldown into DialNumber in schema fields_xsd1 Drilldown into AreaDialing in schema fields_xsd1 Drilldown into CountryDialing in schema fields_xsd1 Drilldown into UseCode in schema fields_xsd1 Drilldown into ChannelCode in schema fields_xsd1 Drilldown into preferredIndicator in schema components_xsd1 Drilldown into sequence in schema components_xsd1 Drilldown into CommunicationABIEType in schema components_xsd1 Drilldown into CommunicationType in schema components_xsd1XSD Diagram of Communication in schema components_xsd1 (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:element name="Communication" type="CommunicationType" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ChannelCode oagis:ChannelCode 0 (1)
UseCode oagis:UseCode 0 (1)
CountryDialing oagis:CountryDialing 0 (1)
AreaDialing oagis:AreaDialing 0 (1)
DialNumber oagis:DialNumber 0 (1)
Extension oagis:Extension 0 (1)
Access oagis:Access 0 (1)
Address oagis:Address 0 (1)
URI oagis:URI 0 (1)
HTMLPreferredIndicator oagis:HTMLPreferredIndicator 0 (1)
Text oagis:Text 0 unbounded
Preference oagis:Preference 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
sequence oagis:sequence (Optional)
preferredIndicator oagis:preferredIndicator (Optional)
Collapse Derivation Tree:
