<xsd:complexType name="CommunicationABIEType">
<xsd:annotation>
<xsd:documentation>
The exchange of thoughts, messages, or information, as by speech,
signals, writing, or behaviour between persons and/or organizations.
</xsd:documentation>
</xsd:annotation>
<xsd:sequence>
<xsd:element maxOccurs="1" minOccurs="0" name="URIID" type="udt:IdentifierType">
<xsd:annotation>
<xsd:documentation source="http://www.starstandard.org/STAR/5"> The unique identifier of
the Uniform Resource Identifier (URI) for this communication such as an email
address. </xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element maxOccurs="1" minOccurs="1" name="ChannelCode" type="udt:CodeType">
<xsd:annotation>
<xsd:documentation source="http://www.starstandard.org/STAR/5"> The code specifying the
channel or manner in which a communication can be made, such as telephone or email.
</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element maxOccurs="1" minOccurs="0" name="LocalNumber" type="udt:TextType">
<xsd:annotation>
<xsd:documentation source="http://www.starstandard.org/STAR/5"> The communication
number, expressed as text and not including country access code or the area number
code, for this communication. </xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element maxOccurs="1" minOccurs="0" name="CompleteNumber" type="udt:TextType">
<xsd:annotation>
<xsd:documentation source="http://www.starstandard.org/STAR/5"> The text string of
characters that make up the complete number for this communication.
</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element maxOccurs="1" minOccurs="0" name="CountryNumberCode" type="udt:CodeType">
<xsd:annotation>
<xsd:documentation source="http://www.starstandard.org/STAR/5"> The country access code
for this communication number such as 44, 1, 353 etc. </xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element maxOccurs="1" minOccurs="0" name="ExtensionNumber" type="udt:TextType">
<xsd:annotation>
<xsd:documentation source="http://www.starstandard.org/STAR/5"> The extension number,
expressed as text, assigned to this communication number to enable a caller to reach
a specific party. </xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element maxOccurs="1" minOccurs="0" name="AreaNumberCode" type="udt:CodeType">
<xsd:annotation>
<xsd:documentation source="http://www.starstandard.org/STAR/5"> The code specifying the
area number typically used in communication. This is also known in the US as the
Area Code. </xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element maxOccurs="1" minOccurs="0" name="Access" type="udt:TextType">
<xsd:annotation>
<xsd:documentation source="http://www.starstandard.org/STAR/5"> Access information,
expressed as text, for the mode of communication such as 9 or *70 for a telephone
network. </xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element maxOccurs="1" minOccurs="0" name="UseCode" type="udt:CodeType">
<xsd:annotation>
<xsd:documentation source="http://www.starstandard.org/STAR/5"> The code specifying the
use of this communication such as for business purposes or private. Such as Home,
Work, Cell, Day, Evening, etc. </xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element maxOccurs="1" minOccurs="0" name="HTMLPreferredIndicator" type="udt:IndicatorType">
<xsd:annotation>
<xsd:documentation source="http://www.starstandard.org/STAR/5"> The indication of
whether or not HTML format is preferred by the recipient for email communications.
Usually sent in Communication components when ChannelCode is Telephone and the URIID
has a mailto: email address. </xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element maxOccurs="1" minOccurs="0" ref="UsagePreference">
<xsd:annotation>
<xsd:documentation>
The preference for the usage of this communication method.
</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element maxOccurs="unbounded" minOccurs="0" ref="Privacy">
<xsd:annotation>
<xsd:documentation source="http://www.starstandard.org/STAR/5">
This is used to indicate the various privacy types for this communication. If appearing within
a Party component, then this option overrides the Privacy types specified at the Party component
for this communication.
</xsd:documentation>
</xsd:annotation>
</xsd:element>
</xsd:sequence>
</xsd:complexType>
|

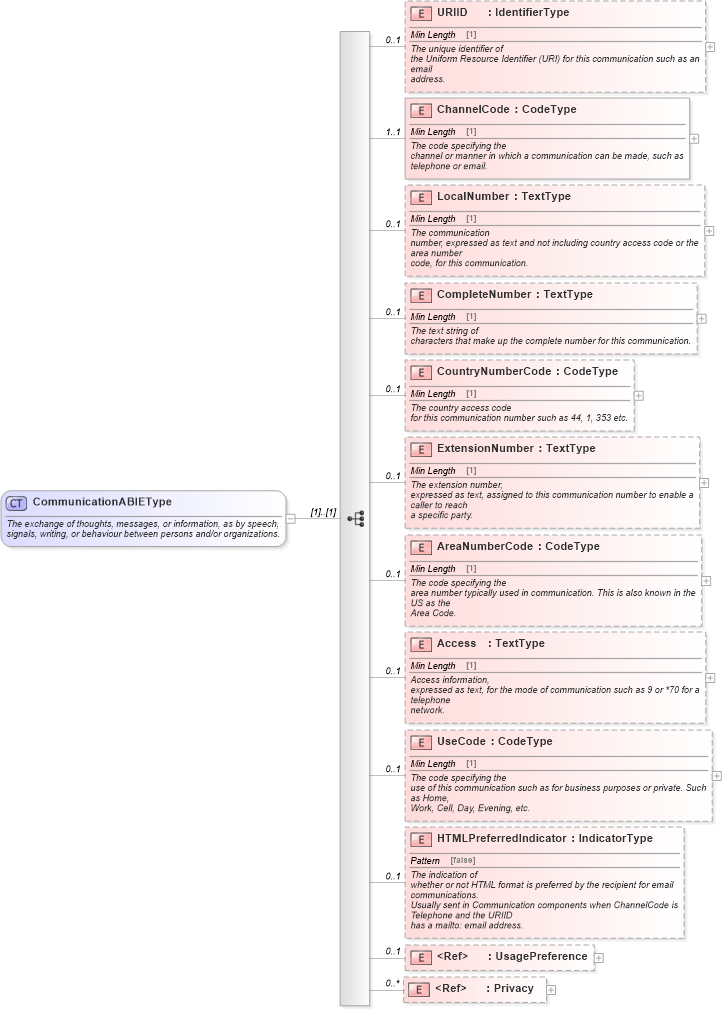

XSD Schema Diagram:
