Documentation for Standards for Technology in Automotive Retail
Definition Type: Element
Name: ComponentCodeGroup
Namespace: http://www.starstandard.org/STAR/5
Type: star:ComponentCodeGroupType
Containing Schema: Components.xsd
Abstract
Documentation:
Represents the Labor Operation Component Code Group sub grouping

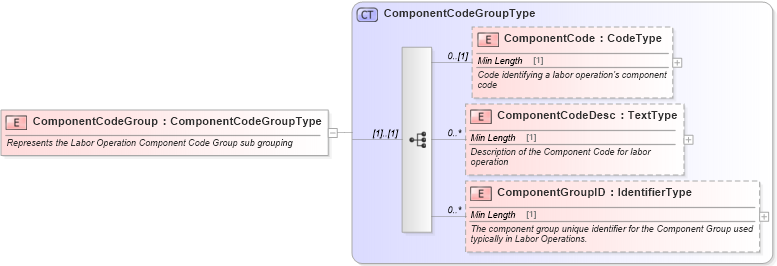

Collapse XSD Schema Diagram:
Drilldown into ComponentGroupID in schema components_xsd Drilldown into ComponentCodeDesc in schema components_xsd Drilldown into ComponentCode in schema components_xsd Drilldown into ComponentCodeGroupType in schema components_xsdXSD Diagram of ComponentCodeGroup in schema components_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:element name="ComponentCodeGroup" type="ComponentCodeGroupType">
    <xsd:annotation>
        <xsd:documentation>Represents the Labor Operation Component Code Group sub grouping</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ComponentCode star:ComponentCode 0 (1)
ComponentCodeDesc star:ComponentCodeDesc 0 unbounded
ComponentGroupID star:ComponentGroupID 0 unbounded
Collapse Derivation Tree:
