Documentation for Standards for Technology in Automotive Retail
Definition Type: Element
Name: Condition
Namespace: http://www.openapplications.org/oagis/9/reusableaggregatecorecomponentSchemaModule/0.1
Type: rcm:ConditionType
Containing Schema: ReusableAggregateCoreComponent.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract

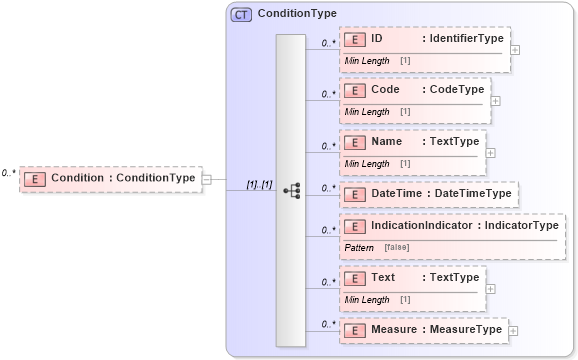

Collapse XSD Schema Diagram:
Drilldown into Measure in schema reusableaggregatecorecomponent_xsd Drilldown into Text in schema reusableaggregatecorecomponent_xsd Drilldown into IndicationIndicator in schema reusableaggregatecorecomponent_xsd Drilldown into DateTime in schema reusableaggregatecorecomponent_xsd Drilldown into Name in schema reusableaggregatecorecomponent_xsd Drilldown into Code in schema reusableaggregatecorecomponent_xsd Drilldown into ID in schema reusableaggregatecorecomponent_xsd Drilldown into ConditionType in schema reusableaggregatecorecomponent_xsdXSD Diagram of Condition in schema reusableaggregatecorecomponent_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:element name="Condition" type="rcm:ConditionType" minOccurs="0" maxOccurs="unbounded" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ID rcm:ID 0 unbounded
Code rcm:Code 0 unbounded
Name rcm:Name 0 unbounded
DateTime rcm:DateTime 0 unbounded
IndicationIndicator rcm:IndicationIndicator 0 unbounded
Text rcm:Text 0 unbounded
Measure rcm:Measure 0 unbounded
Collapse Derivation Tree:
