Documentation for Standards for Technology in Automotive Retail
Definition Type: ComplexType
Name: ContractVehiclePricingType
Namespace: http://www.starstandard.org/STAR/5
Containing Schema: Components.xsd
Abstract
Documentation:
The pricing for a vehicle on a contract.

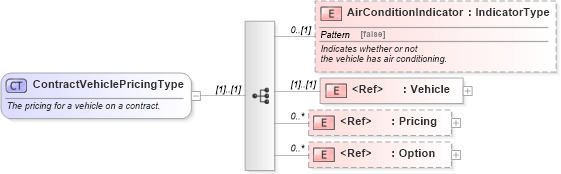

Collapse XSD Schema Diagram:
Drilldown into Option in schema components_xsd Drilldown into Pricing in schema components_xsd Drilldown into Vehicle in schema components_xsd Drilldown into AirConditionIndicator in schema components_xsdXSD Diagram of ContractVehiclePricingType in schema components_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:complexType name="ContractVehiclePricingType">
    <xsd:annotation>
        <xsd:documentation>The pricing for a vehicle on a contract.</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element minOccurs="0" name="AirConditionIndicator" type="udt:IndicatorType">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Indicates whether or not
                the vehicle has air conditioning.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="Vehicle" />
        <xsd:element maxOccurs="unbounded" minOccurs="0" ref="Pricing" />
        <xsd:element maxOccurs="unbounded" minOccurs="0" ref="Option" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
AirConditionIndicator star:AirConditionIndicator 0 (1)
Vehicle star:Vehicle (1) (1)
Pricing star:Pricing 0 unbounded
Option star:Option 0 unbounded
Collapse Derivation Tree:
Collapse References:
star:ContractVehiclePricing
