Documentation for Standards for Technology in Automotive Retail
Definition Type: Element
Name: CountrySubDivisionCode
Namespace: http://www.openapplications.org/oagis/9
Type: oagis:CountrySubDivisionCodeType
Containing Schema: Fields.xsd
Abstract
Documentation:
Qualifies the further division of the Country. These may be Districts, Regions, States, Provinces etc. A possible list of values is as specified in ISO 3166-2. The name attribute identifies the name of this e.g. District, Region etc, and there is a pre-defined list of types supported, with the ability to add new ones as necessary

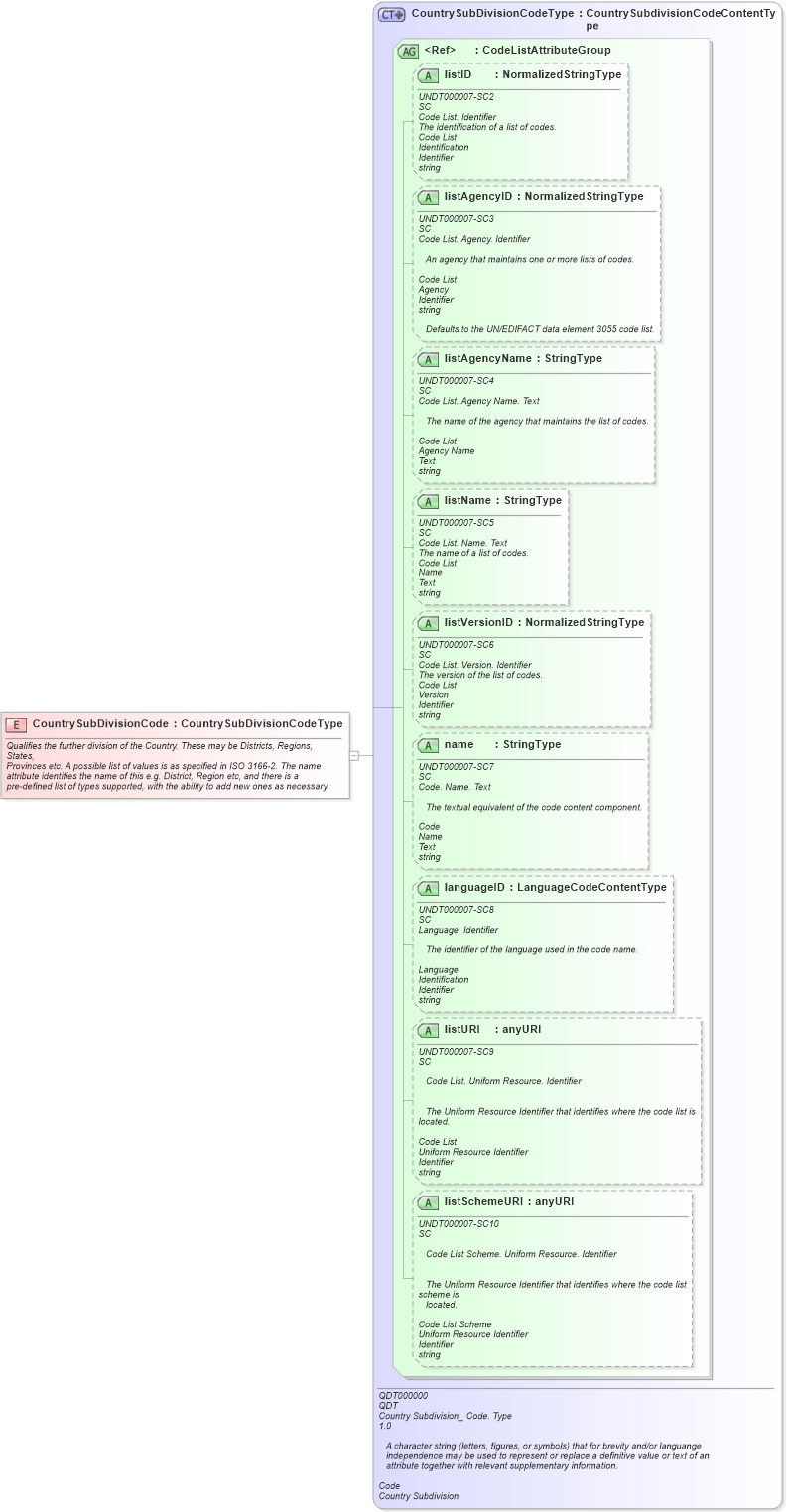

Collapse XSD Schema Diagram:
Drilldown into listSchemeURI in schema fields_xsd1 Drilldown into listURI in schema fields_xsd1 Drilldown into languageID in schema fields_xsd1 Drilldown into name in schema fields_xsd1 Drilldown into listVersionID in schema fields_xsd1 Drilldown into listName in schema fields_xsd1 Drilldown into listAgencyName in schema fields_xsd1 Drilldown into listAgencyID in schema fields_xsd1 Drilldown into listID in schema fields_xsd1 Drilldown into CodeListAttributeGroup in schema fields_xsd1 Drilldown into CountrySubDivisionCodeType in schema fields_xsd1XSD Diagram of CountrySubDivisionCode in schema fields_xsd1 (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:element name="CountrySubDivisionCode" type="CountrySubDivisionCodeType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">
            Qualifies the further division of the Country. These may be Districts, Regions, States,
            Provinces etc. A possible list of values is as specified in ISO 3166-2. The name
            attribute identifies the name of this e.g. District, Region etc, and there is a
            pre-defined list of types supported, with the ability to add new ones as necessary
         </xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Attributes:
Name Type Default Value Use
listID oagis:listID Optional
listAgencyID oagis:listAgencyID Optional
listAgencyName oagis:listAgencyName Optional
listName oagis:listName Optional
listVersionID oagis:listVersionID Optional
name oagis:name Optional
languageID oagis:languageID Optional
listURI oagis:listURI Optional
listSchemeURI oagis:listSchemeURI Optional
Collapse Derivation Tree:
