Documentation for Standards for Technology in Automotive Retail
Definition Type: ComplexType
Name: CoverageType
Namespace: http://www.starstandard.org/STAR/5
Containing Schema: Components.xsd
Abstract

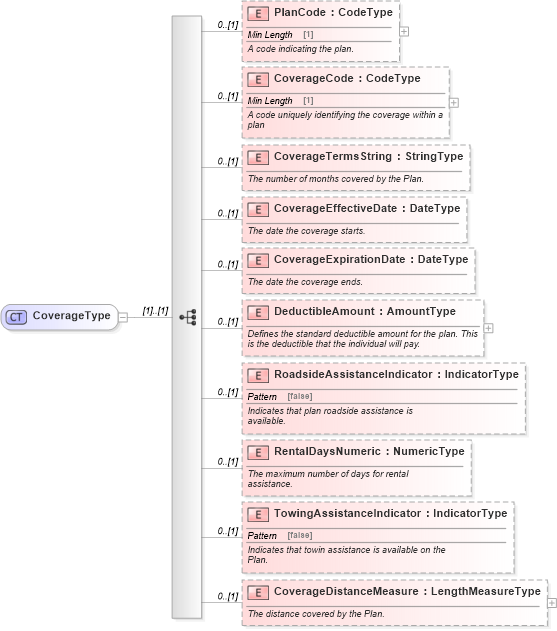

Collapse XSD Schema Diagram:
Drilldown into CoverageDistanceMeasure in schema components_xsd Drilldown into TowingAssistanceIndicator in schema components_xsd Drilldown into RentalDaysNumeric in schema components_xsd Drilldown into RoadsideAssistanceIndicator in schema components_xsd Drilldown into DeductibleAmount in schema components_xsd Drilldown into CoverageExpirationDate in schema components_xsd Drilldown into CoverageEffectiveDate in schema components_xsd Drilldown into CoverageTermsString in schema components_xsd Drilldown into CoverageCode in schema components_xsd Drilldown into PlanCode in schema components_xsdXSD Diagram of CoverageType in schema components_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:complexType name="CoverageType">
    <xsd:sequence>
        <xsd:element minOccurs="0" name="PlanCode" type="udt:CodeType">
            <xsd:annotation>
                <xsd:documentation>
                        A code indicating the plan.
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="CoverageCode" type="udt:CodeType">
            <xsd:annotation>
                <xsd:documentation>
                        A code uniquely identifying the coverage within a
                        plan
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="CoverageTermsString" type="qdt:StringType">
            <xsd:annotation>
                <xsd:documentation>
                        The number of months covered by the Plan.
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="CoverageEffectiveDate" type="udt:DateType">
            <xsd:annotation>
                <xsd:documentation>
                        The date the coverage starts.
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="CoverageExpirationDate" type="udt:DateType">
            <xsd:annotation>
                <xsd:documentation>
                        The date the coverage ends.
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="DeductibleAmount" type="udt:AmountType">
            <xsd:annotation>
                <xsd:documentation>
                        Defines the standard deductible amount for the plan. This
                            is the deductible that the individual will pay.
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="RoadsideAssistanceIndicator" type="udt:IndicatorType">
            <xsd:annotation>
                <xsd:documentation>
                        Indicates that plan roadside assistance is
                        available.
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="RentalDaysNumeric" type="udt:NumericType">
            <xsd:annotation>
                <xsd:documentation>
                        The maximum number of days for rental
                        assistance.
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="TowingAssistanceIndicator" type="udt:IndicatorType">
            <xsd:annotation>
                <xsd:documentation>
                        Indicates that towin assistance is available on the
                        Plan.
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="CoverageDistanceMeasure" type="sqdt:LengthMeasureType">
            <xsd:annotation>
                <xsd:documentation>
                        The distance covered by the Plan.
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
PlanCode star:PlanCode 0 (1)
CoverageCode star:CoverageCode 0 (1)
CoverageTermsString star:CoverageTermsString 0 (1)
CoverageEffectiveDate star:CoverageEffectiveDate 0 (1)
CoverageExpirationDate star:CoverageExpirationDate 0 (1)
DeductibleAmount star:DeductibleAmount 0 (1)
RoadsideAssistanceIndicator star:RoadsideAssistanceIndicator 0 (1)
RentalDaysNumeric star:RentalDaysNumeric 0 (1)
TowingAssistanceIndicator star:TowingAssistanceIndicator 0 (1)
CoverageDistanceMeasure star:CoverageDistanceMeasure 0 (1)
Collapse Derivation Tree:
Collapse References:
star:Coverage
