Documentation for Standards for Technology in Automotive Retail
Definition Type: Element
Name: CreditApplicationHeader
Namespace: http://www.starstandard.org/STAR/5
Type: star:CreditApplicationHeaderType
Containing Schema: CreditApplication.xsd
Abstract
Documentation:
For each CreditApplication represented in the DataArea of the Credit Application Business Object Document, there must be one occurrence of the Header component.

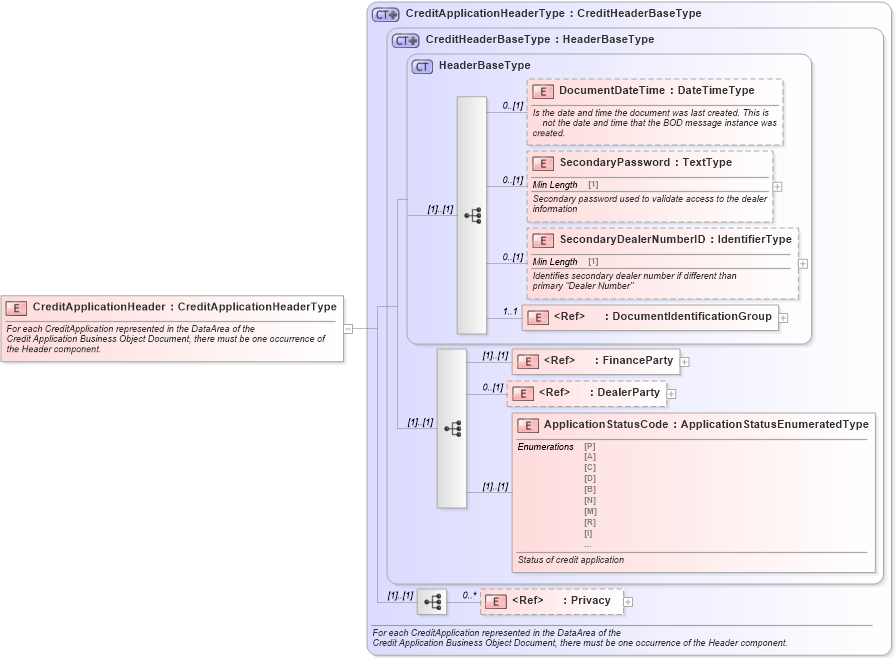

Collapse XSD Schema Diagram:
Drilldown into Privacy in schema components_xsd Drilldown into ApplicationStatusCode in schema components_xsd Drilldown into DealerParty in schema components_xsd Drilldown into FinanceParty in schema components_xsd Drilldown into DocumentIdentificationGroup in schema components_xsd Drilldown into SecondaryDealerNumberID in schema components_xsd Drilldown into SecondaryPassword in schema components_xsd Drilldown into DocumentDateTime in schema components_xsd Drilldown into HeaderBaseType in schema components_xsd Drilldown into CreditHeaderBaseType in schema components_xsd Drilldown into CreditApplicationHeaderType in schema creditapplication_xsdXSD Diagram of CreditApplicationHeader in schema creditapplication_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:element name="CreditApplicationHeader" type="CreditApplicationHeaderType">
    <xsd:annotation>
        <xsd:documentation source="http://www.starstandard.org/STAR/5">For each CreditApplication represented in the DataArea of the
            Credit Application Business Object Document, there must be one occurrence of the Header component.
         </xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DocumentDateTime star:DocumentDateTime 0 (1)
SecondaryPassword star:SecondaryPassword 0 (1)
SecondaryDealerNumberID star:SecondaryDealerNumberID 0 (1)
DocumentIdentificationGroup star:DocumentIdentificationGroup 1 1
FinanceParty star:FinanceParty (1) (1)
DealerParty star:DealerParty 0 (1)
ApplicationStatusCode star:ApplicationStatusCode (1) (1)
Privacy star:Privacy 0 unbounded
Collapse Derivation Tree:
