Documentation for Standards for Technology in Automotive Retail
Definition Type: ComplexType
Name: CreditContractResponseType
Namespace: http://www.starstandard.org/STAR/5
Containing Schema: CreditContractResponse.xsd
Abstract
Documentation:
STAR Version 3.0 - Draft STAR Version 2.1, STAR approved 04/20/2005; effective date 07/04/2005 STAR Version 2.0, STAR approved 05/07/2004; effective date 07/04/2004 STAR Version 1.0 STAR approved 01/10/2003; OAGI approved 3/15/2003; effective date 01/01/2003

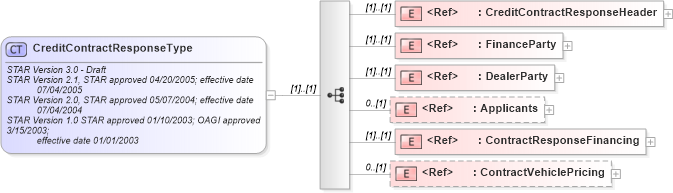

Collapse XSD Schema Diagram:
Drilldown into ContractVehiclePricing in schema components_xsd Drilldown into ContractResponseFinancing in schema components_xsd Drilldown into Applicants in schema components_xsd Drilldown into DealerParty in schema components_xsd Drilldown into FinanceParty in schema components_xsd Drilldown into CreditContractResponseHeader in schema creditcontractresponse_xsdXSD Diagram of CreditContractResponseType in schema creditcontractresponse_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:complexType name="CreditContractResponseType">
    <xsd:annotation xmlns="http://www.starstandards.org/STAR">
        <xsd:documentation source="http://www.starstandard.org/STAR/5">STAR Version 3.0 - Draft</xsd:documentation>
        <xsd:documentation source="http://www.starstandard.org/STAR/5">STAR Version 2.1, STAR approved 04/20/2005; effective date
            07/04/2005</xsd:documentation>
        <xsd:documentation source="http://www.starstandard.org/STAR/5">STAR Version 2.0, STAR approved 05/07/2004; effective date
            07/04/2004</xsd:documentation>
        <xsd:documentation source="http://www.starstandard.org/STAR/5">STAR Version 1.0 STAR approved 01/10/2003; OAGI approved 3/15/2003;
            effective date 01/01/2003</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element ref="CreditContractResponseHeader">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/STAR/5">For each CreditContractResponse represented in the Data Area
                  of the Credit Contract Response BOD, there must be one occurrence of the Header component.
               </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="FinanceParty">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/STAR/5" />
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="DealerParty">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/STAR/5" />
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="Applicants" minOccurs="0" />
        <xsd:element ref="ContractResponseFinancing">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/STAR/5">The Financing component represents finance information for
                  the credit contract.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="ContractVehiclePricing" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/STAR/5" />
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
CreditContractResponseHeader star:CreditContractResponseHeader (1) (1)
FinanceParty star:FinanceParty (1) (1)
DealerParty star:DealerParty (1) (1)
Applicants star:Applicants 0 (1)
ContractResponseFinancing star:ContractResponseFinancing (1) (1)
ContractVehiclePricing star:ContractVehiclePricing 0 (1)
Collapse Derivation Tree:
Collapse References:
star:CreditContractResponse
