Documentation for Standards for Technology in Automotive Retail
Definition Type: ComplexType
Name: CreditContractRespOptionType
Namespace: http://www.starstandard.org/STAR/5
Containing Schema: Components.xsd
Abstract

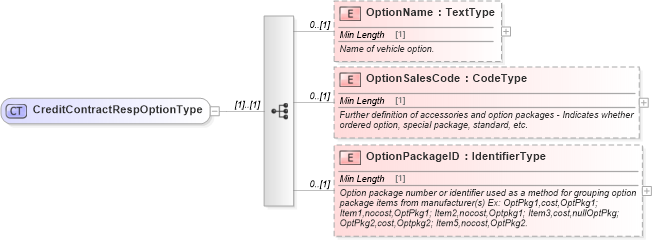

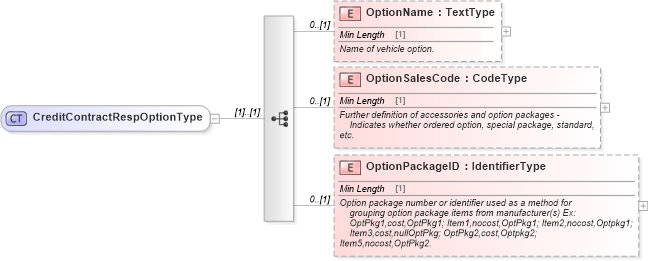

Collapse XSD Schema Diagram:
Drilldown into OptionPackageID in schema components_xsd Drilldown into OptionSalesCode in schema components_xsd Drilldown into OptionName in schema components_xsdXSD Diagram of CreditContractRespOptionType in schema components_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:complexType name="CreditContractRespOptionType">
    <xsd:sequence>
        <xsd:element minOccurs="0" name="OptionName" type="udt:TextType">
            <xsd:annotation>
                <xsd:documentation>
                        Name of vehicle option.
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="OptionSalesCode" type="udt:CodeType">
            <xsd:annotation>
                <xsd:documentation>
                        Further definition of accessories and option packages -
                            Indicates whether ordered option, special package, standard,
                        etc.
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="OptionPackageID" type="udt:IdentifierType">
            <xsd:annotation>
                <xsd:documentation>
                        Option package number or identifier used as a method for
                            grouping option package items from manufacturer(s) Ex:
                            OptPkg1,cost,OptPkg1; Item1,nocost,OptPkg1; Item2,nocost,Optpkg1;
                            Item3,cost,nullOptPkg; OptPkg2,cost,Optpkg2;
                        Item5,nocost,OptPkg2.
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
OptionName star:OptionName 0 (1)
OptionSalesCode star:OptionSalesCode 0 (1)
OptionPackageID star:OptionPackageID 0 (1)
Collapse Derivation Tree:
Collapse References:
star:CreditContractRespOption
