Documentation for Standards for Technology in Automotive Retail
Definition Type: ComplexType
Name: CreditContractRespVehicleType
Namespace: http://www.starstandard.org/STAR/5
Type: star:VehicleType
Containing Schema: DeprecatedComponents.xsd
Abstract
Documentation:
Deprecated: Use VehicleABIEType

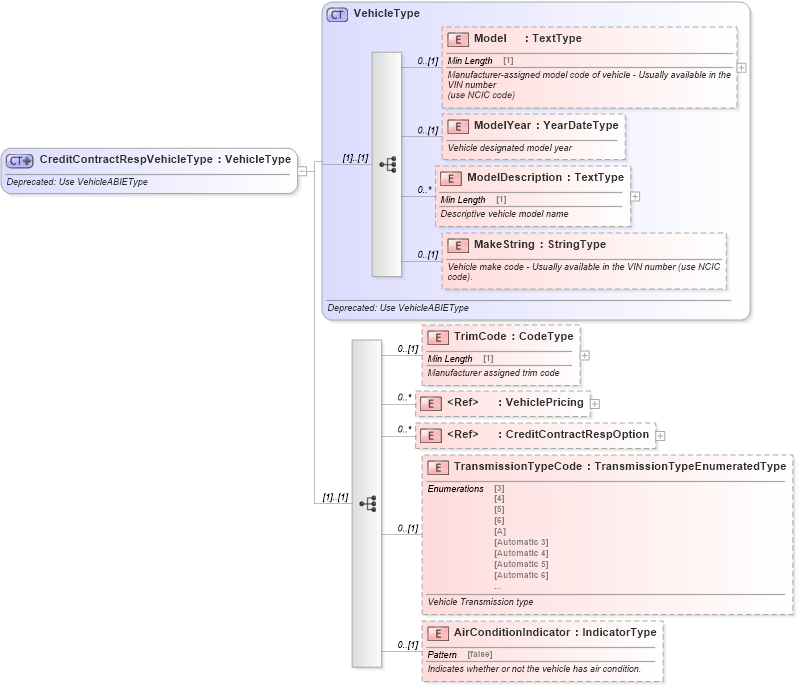

Collapse XSD Schema Diagram:
Drilldown into AirConditionIndicator in schema deprecatedcomponents_xsd Drilldown into TransmissionTypeCode in schema deprecatedcomponents_xsd Drilldown into CreditContractRespOption in schema components_xsd Drilldown into VehiclePricing in schema components_xsd Drilldown into TrimCode in schema deprecatedcomponents_xsd Drilldown into MakeString in schema deprecatedcomponents_xsd Drilldown into ModelDescription in schema deprecatedcomponents_xsd Drilldown into ModelYear in schema deprecatedcomponents_xsd Drilldown into Model in schema deprecatedcomponents_xsd Drilldown into VehicleType in schema deprecatedcomponents_xsdXSD Diagram of CreditContractRespVehicleType in schema deprecatedcomponents_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:complexType name="CreditContractRespVehicleType">
    <xsd:annotation>
        <xsd:documentation>Deprecated: Use VehicleABIEType</xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="VehicleType">
            <xsd:sequence>
                <xsd:element minOccurs="0" name="TrimCode" type="udt:CodeType">
                    <xsd:annotation>
                        <xsd:documentation>
                            <ccts:Definition xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Manufacturer assigned trim code</ccts:Definition>
                        </xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element maxOccurs="unbounded" minOccurs="0" ref="VehiclePricing">
                    <xsd:annotation>
                        <xsd:documentation>
                            <ccts:Definition xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Vehicle Pricing</ccts:Definition>
                        </xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element maxOccurs="unbounded" minOccurs="0" ref="CreditContractRespOption">
                    <xsd:annotation>
                        <xsd:documentation>
                            <ccts:Definition xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">The Option component represents information about the options and replacements
                           that are associated with a vehicle. Each vehicle can have multiple options.</ccts:Definition>
                        </xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element minOccurs="0" name="TransmissionTypeCode" type="scl:TransmissionTypeEnumeratedType">
                    <xsd:annotation>
                        <xsd:documentation>
                            <ccts:Definition xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Vehicle Transmission type</ccts:Definition>
                        </xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element minOccurs="0" name="AirConditionIndicator" type="udt:IndicatorType">
                    <xsd:annotation>
                        <xsd:documentation>
                            <ccts:Definition xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Indicates whether or not the vehicle has air condition.</ccts:Definition>
                        </xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Model star:Model 0 (1)
ModelYear star:ModelYear 0 (1)
ModelDescription star:ModelDescription 0 unbounded
MakeString star:MakeString 0 (1)
TrimCode star:TrimCode 0 (1)
VehiclePricing star:VehiclePricing 0 unbounded
CreditContractRespOption star:CreditContractRespOption 0 unbounded
TransmissionTypeCode star:TransmissionTypeCode 0 (1)
AirConditionIndicator star:AirConditionIndicator 0 (1)
Collapse Derivation Tree:
Collapse References:
star:CreditContractRespVehicle
