Documentation for Standards for Technology in Automotive Retail
Definition Type: Element
Name: CreditDecisionHeader
Namespace: http://www.starstandard.org/STAR/5
Type: star:CreditDecisionHeaderType
Containing Schema: CreditDecision.xsd
Abstract
Documentation:
For each CreditDecision represented in the DataArea of the Credit Decision BOD, there must be one occurrence of the Header Component.

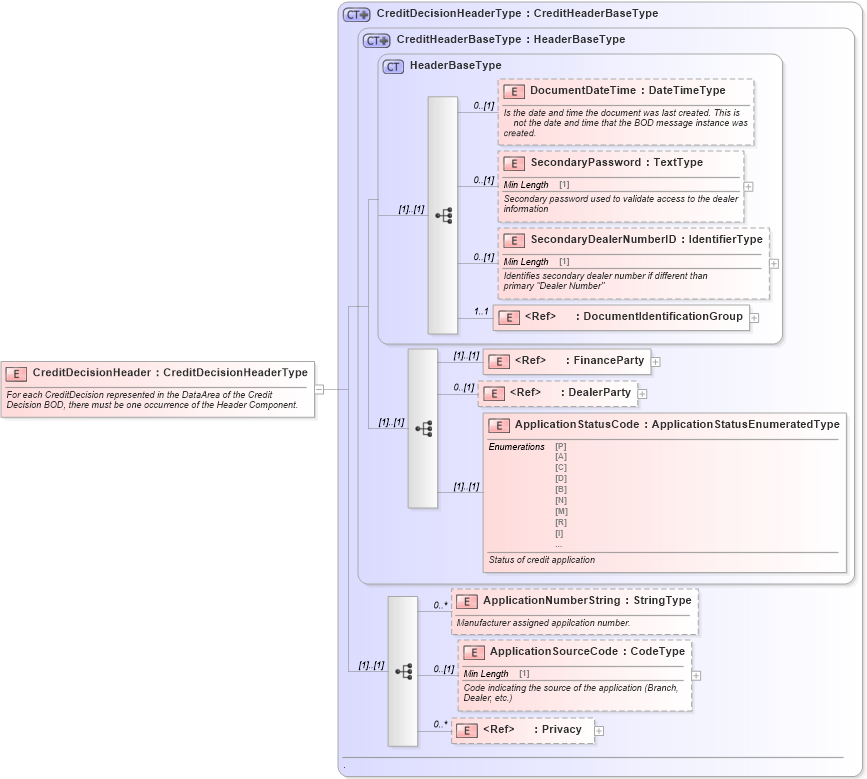

Collapse XSD Schema Diagram:
Drilldown into Privacy in schema components_xsd Drilldown into ApplicationSourceCode in schema creditdecision_xsd Drilldown into ApplicationNumberString in schema creditdecision_xsd Drilldown into ApplicationStatusCode in schema components_xsd Drilldown into DealerParty in schema components_xsd Drilldown into FinanceParty in schema components_xsd Drilldown into DocumentIdentificationGroup in schema components_xsd Drilldown into SecondaryDealerNumberID in schema components_xsd Drilldown into SecondaryPassword in schema components_xsd Drilldown into DocumentDateTime in schema components_xsd Drilldown into HeaderBaseType in schema components_xsd Drilldown into CreditHeaderBaseType in schema components_xsd Drilldown into CreditDecisionHeaderType in schema creditdecision_xsdXSD Diagram of CreditDecisionHeader in schema creditdecision_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:element name="CreditDecisionHeader" type="CreditDecisionHeaderType">
    <xsd:annotation>
        <xsd:documentation source="http://www.starstandard.org/STAR/5"> For each CreditDecision represented in the DataArea of the Credit
            Decision BOD, there must be one occurrence of the Header Component.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DocumentDateTime star:DocumentDateTime 0 (1)
SecondaryPassword star:SecondaryPassword 0 (1)
SecondaryDealerNumberID star:SecondaryDealerNumberID 0 (1)
DocumentIdentificationGroup star:DocumentIdentificationGroup 1 1
FinanceParty star:FinanceParty (1) (1)
DealerParty star:DealerParty 0 (1)
ApplicationStatusCode star:ApplicationStatusCode (1) (1)
ApplicationNumberString star:ApplicationNumberString 0 unbounded
ApplicationSourceCode star:ApplicationSourceCode 0 (1)
Privacy star:Privacy 0 unbounded
Collapse Derivation Tree:
