Definition Type: ComplexType
Name: CriteriaType
Namespace: http://www.starstandards.org/webservices/2009/transport
Containing Schema: STARWSDLDataTypes4.xsd
Abstract
Documentation:
Defines the available elements that can be used to specify the filter criteria.

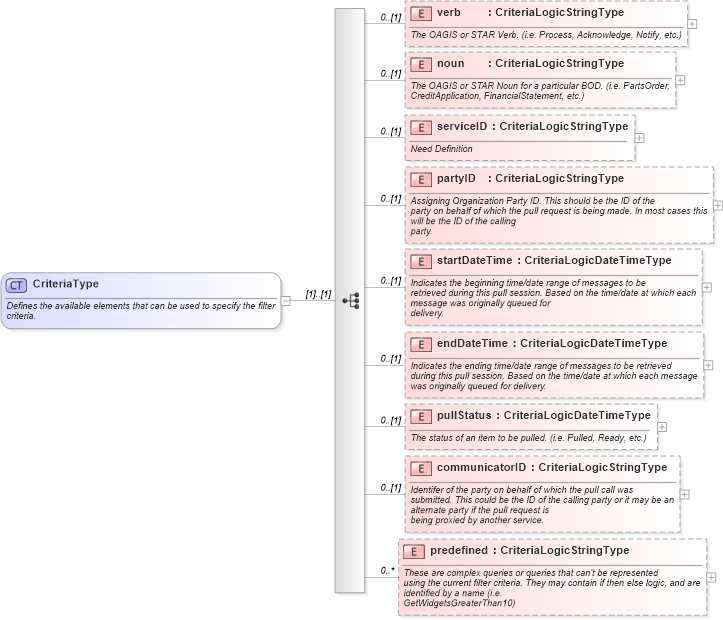

Collapse XSD Schema Diagram:
Drilldown into predefined in schema starwsdldatatypes4_xsd Drilldown into communicatorID in schema starwsdldatatypes4_xsd Drilldown into pullStatus in schema starwsdldatatypes4_xsd Drilldown into endDateTime in schema starwsdldatatypes4_xsd Drilldown into startDateTime in schema starwsdldatatypes4_xsd Drilldown into partyID in schema starwsdldatatypes4_xsd Drilldown into serviceID in schema starwsdldatatypes4_xsd Drilldown into noun in schema starwsdldatatypes4_xsd Drilldown into verb in schema starwsdldatatypes4_xsdXSD Diagram of CriteriaType in schema starwsdldatatypes4_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:complexType name="CriteriaType">
    <xsd:annotation>
        <xsd:documentation source="http://www.starstandard.org/"> Defines the available elements that can be used to specify the filter
        criteria.</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <!-- Add an attribute for Not as an indicator (true/false). -->
        <xsd:element minOccurs="0" name="verb" type="CriteriaLogicStringType">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/"> The OAGIS or STAR Verb. (i.e. Process, Acknowledge, Notify, etc.)
          </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="noun" type="CriteriaLogicStringType">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/"> The OAGIS or STAR Noun for a particular BOD. (i.e. PartsOrder,
            CreditApplication, FinancialStatement, etc.)</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="serviceID" type="CriteriaLogicStringType">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/"> Need Definition</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="partyID" type="CriteriaLogicStringType">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org"> Assigning Organization Party ID. This should be the ID of the
            party on behalf of which the pull request is being made. In most cases this will be the ID of the calling
            party.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="startDateTime" type="CriteriaLogicDateTimeType">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org"> Indicates the beginning time/date range of messages to be
            retrieved during this pull session. Based on the time/date at which each message was originally queued for
            delivery.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="endDateTime" type="CriteriaLogicDateTimeType">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/"> Indicates the ending time/date range of messages to be retrieved
            during this pull session. Based on the time/date at which each message was originally queued for delivery.
          </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="pullStatus" type="CriteriaLogicDateTimeType">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/"> The status of an item to be pulled. (i.e. Pulled, Ready, etc.)
          </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="communicatorID" type="CriteriaLogicStringType">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/"> Identifer of the party on behalf of which the pull call was
            submitted. This could be the ID of the calling party or it may be an alternate party if the pull request is
            being proxied by another service.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="predefined" type="CriteriaLogicStringType" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/"> These are complex queries or queries that can't be represented
            using the current filter criteria. They may contain if then else logic, and are identified by a name (i.e.
            GetWidgetsGreaterThan10)</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
verb starws:verb 0 (1)
noun starws:noun 0 (1)
serviceID starws:serviceID 0 (1)
partyID starws:partyID 0 (1)
startDateTime starws:startDateTime 0 (1)
endDateTime starws:endDateTime 0 (1)
pullStatus starws:pullStatus 0 (1)
communicatorID starws:communicatorID 0 (1)
predefined starws:predefined 0 unbounded
Collapse Derivation Tree:
Collapse References:
starws:criteria
