Documentation for Standards for Technology in Automotive Retail
Definition Type: Element
Name: DangerousGoods
Namespace: http://www.openapplications.org/oagis/9/reusableaggregatecorecomponentSchemaModule/0.1
Type: rcm:DangerousGoodsType
Containing Schema: ReusableAggregateCoreComponent.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract

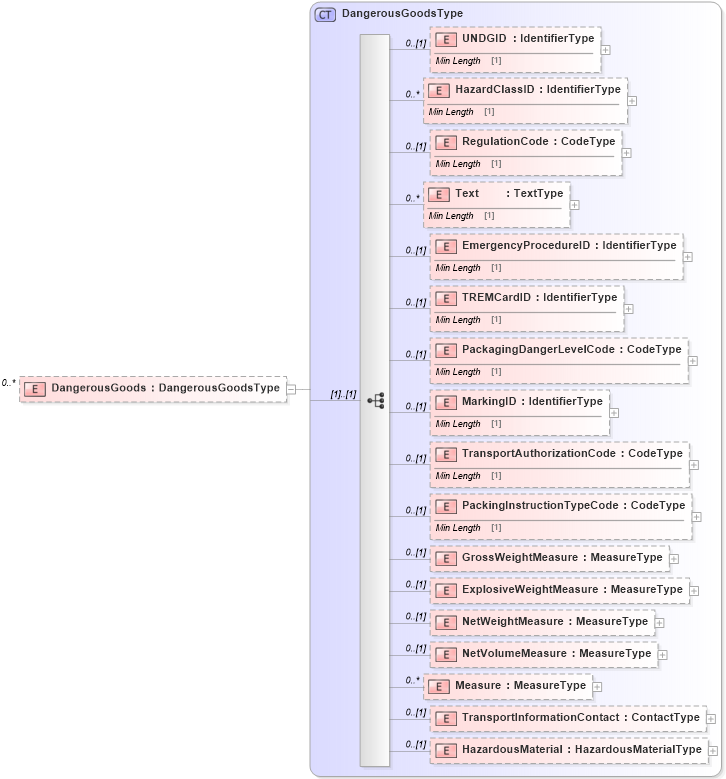

Collapse XSD Schema Diagram:
Drilldown into HazardousMaterial in schema reusableaggregatecorecomponent_xsd Drilldown into TransportInformationContact in schema reusableaggregatecorecomponent_xsd Drilldown into Measure in schema reusableaggregatecorecomponent_xsd Drilldown into NetVolumeMeasure in schema reusableaggregatecorecomponent_xsd Drilldown into NetWeightMeasure in schema reusableaggregatecorecomponent_xsd Drilldown into ExplosiveWeightMeasure in schema reusableaggregatecorecomponent_xsd Drilldown into GrossWeightMeasure in schema reusableaggregatecorecomponent_xsd Drilldown into PackingInstructionTypeCode in schema reusableaggregatecorecomponent_xsd Drilldown into TransportAuthorizationCode in schema reusableaggregatecorecomponent_xsd Drilldown into MarkingID in schema reusableaggregatecorecomponent_xsd Drilldown into PackagingDangerLevelCode in schema reusableaggregatecorecomponent_xsd Drilldown into TREMCardID in schema reusableaggregatecorecomponent_xsd Drilldown into EmergencyProcedureID in schema reusableaggregatecorecomponent_xsd Drilldown into Text in schema reusableaggregatecorecomponent_xsd Drilldown into RegulationCode in schema reusableaggregatecorecomponent_xsd Drilldown into HazardClassID in schema reusableaggregatecorecomponent_xsd Drilldown into UNDGID in schema reusableaggregatecorecomponent_xsd Drilldown into DangerousGoodsType in schema reusableaggregatecorecomponent_xsdXSD Diagram of DangerousGoods in schema reusableaggregatecorecomponent_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:element name="DangerousGoods" type="rcm:DangerousGoodsType" minOccurs="0" maxOccurs="unbounded" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
UNDGID rcm:UNDGID 0 (1)
HazardClassID rcm:HazardClassID 0 unbounded
RegulationCode rcm:RegulationCode 0 (1)
Text rcm:Text 0 unbounded
EmergencyProcedureID rcm:EmergencyProcedureID 0 (1)
TREMCardID rcm:TREMCardID 0 (1)
PackagingDangerLevelCode rcm:PackagingDangerLevelCode 0 (1)
MarkingID rcm:MarkingID 0 (1)
TransportAuthorizationCode rcm:TransportAuthorizationCode 0 (1)
PackingInstructionTypeCode rcm:PackingInstructionTypeCode 0 (1)
GrossWeightMeasure rcm:GrossWeightMeasure 0 (1)
ExplosiveWeightMeasure rcm:ExplosiveWeightMeasure 0 (1)
NetWeightMeasure rcm:NetWeightMeasure 0 (1)
NetVolumeMeasure rcm:NetVolumeMeasure 0 (1)
Measure rcm:Measure 0 unbounded
TransportInformationContact rcm:TransportInformationContact 0 (1)
HazardousMaterial rcm:HazardousMaterial 0 (1)
Collapse Derivation Tree:
