Definition Type: ComplexType
Name: DaysOfWeekType
Namespace: http://www.starstandard.org/STAR/5
Containing Schema: Components.xsd
Abstract
Documentation:
The DaysOfWeek component is used to identify availability based on days of the week.

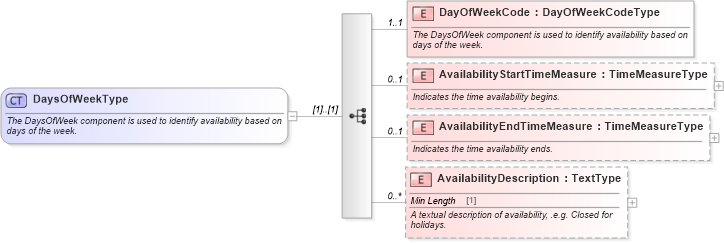

Collapse XSD Schema Diagram:
Drilldown into AvailabilityDescription in schema components_xsd Drilldown into AvailabilityEndTimeMeasure in schema components_xsd Drilldown into AvailabilityStartTimeMeasure in schema components_xsd Drilldown into DayOfWeekCode in schema components_xsdXSD Diagram of DaysOfWeekType in schema components_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:complexType name="DaysOfWeekType">
    <xsd:annotation>
        <xsd:documentation>The DaysOfWeek component is used to identify availability based on
                days of the week.</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element maxOccurs="1" minOccurs="1" name="DayOfWeekCode" type="sqdt:DayOfWeekCodeType">
            <xsd:annotation>
                <xsd:documentation>The DaysOfWeek component is used to identify availability based on
                days of the week.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="1" minOccurs="0" name="AvailabilityStartTimeMeasure" type="sqdt:TimeMeasureType">
            <xsd:annotation>
                <xsd:documentation>Indicates the time availability begins.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="1" minOccurs="0" name="AvailabilityEndTimeMeasure" type="sqdt:TimeMeasureType">
            <xsd:annotation>
                <xsd:documentation>Indicates the time availability ends.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="unbounded" minOccurs="0" name="AvailabilityDescription" type="udt:TextType">
            <xsd:annotation>
                <xsd:documentation>A textual description of availability, .e.g. Closed for
            holidays.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DayOfWeekCode star:DayOfWeekCode 1 1
AvailabilityStartTimeMeasure star:AvailabilityStartTimeMeasure 0 1
AvailabilityEndTimeMeasure star:AvailabilityEndTimeMeasure 0 1
AvailabilityDescription star:AvailabilityDescription 0 unbounded
Collapse Derivation Tree:
Collapse References:
star:DaysOfWeek
