Documentation for Standards for Technology in Automotive Retail
Definition Type: ComplexType
Name: DealerExtendedContractsExt2Type
Namespace: http://www.starstandard.org/STAR/5
Containing Schema: DeprecatedComponents.xsd
Abstract
Documentation:
Deprecated: Use PartyABIEType

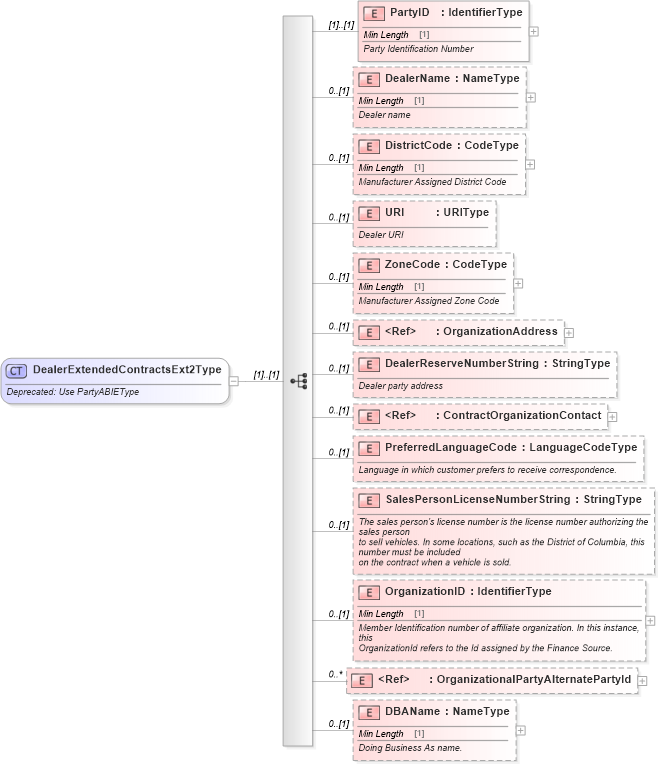

Collapse XSD Schema Diagram:
Drilldown into DBAName in schema deprecatedcomponents_xsd Drilldown into OrganizationalPartyAlternatePartyId in schema deprecatedcomponents_xsd Drilldown into OrganizationID in schema deprecatedcomponents_xsd Drilldown into SalesPersonLicenseNumberString in schema deprecatedcomponents_xsd Drilldown into PreferredLanguageCode in schema deprecatedcomponents_xsd Drilldown into ContractOrganizationContact in schema deprecatedcomponents_xsd Drilldown into DealerReserveNumberString in schema deprecatedcomponents_xsd Drilldown into OrganizationAddress in schema deprecatedcomponents_xsd Drilldown into ZoneCode in schema deprecatedcomponents_xsd Drilldown into URI in schema deprecatedcomponents_xsd Drilldown into DistrictCode in schema deprecatedcomponents_xsd Drilldown into DealerName in schema deprecatedcomponents_xsd Drilldown into PartyID in schema deprecatedcomponents_xsdXSD Diagram of DealerExtendedContractsExt2Type in schema deprecatedcomponents_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:complexType name="DealerExtendedContractsExt2Type">
    <xsd:annotation>
        <xsd:documentation>Deprecated: Use PartyABIEType</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element name="PartyID" type="udt:IdentifierType">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Definition xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Party Identification Number</ccts:Definition>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="DealerName" type="udt:NameType">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Definition xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Dealer name</ccts:Definition>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="DistrictCode" type="udt:CodeType">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Definition xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Manufacturer Assigned District Code</ccts:Definition>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="URI" type="qdt:URIType">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Definition xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Dealer URI</ccts:Definition>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="ZoneCode" type="udt:CodeType">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Definition xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Manufacturer Assigned Zone Code</ccts:Definition>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" ref="OrganizationAddress">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Definition xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Dealer party address</ccts:Definition>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="DealerReserveNumberString" type="qdt:StringType">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Definition xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Dealer party address</ccts:Definition>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" ref="ContractOrganizationContact">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Definition xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Organizational Party contact information</ccts:Definition>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="PreferredLanguageCode" type="sqdt:LanguageCodeType">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Definition xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Language in which customer prefers to receive correspondence.</ccts:Definition>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="SalesPersonLicenseNumberString" type="qdt:StringType">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Definition xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">The sales person's license number is the license number authorizing the sales person
                     to sell vehicles. In some locations, such as the District of Columbia, this number must be included
                     on the contract when a vehicle is sold.</ccts:Definition>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="OrganizationID" type="udt:IdentifierType">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Definition xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Member Identification number of affiliate organization. In this instance, this
                     OrganizationId refers to the Id assigned by the Finance Source.</ccts:Definition>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="unbounded" minOccurs="0" ref="OrganizationalPartyAlternatePartyId">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Definition xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Alternate organizational party Identification</ccts:Definition>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="DBAName" type="udt:NameType">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Definition xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Doing Business As name.</ccts:Definition>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
PartyID star:PartyID (1) (1)
DealerName star:DealerName 0 (1)
DistrictCode star:DistrictCode 0 (1)
URI star:URI 0 (1)
ZoneCode star:ZoneCode 0 (1)
OrganizationAddress star:OrganizationAddress 0 (1)
DealerReserveNumberString star:DealerReserveNumberString 0 (1)
ContractOrganizationContact star:ContractOrganizationContact 0 (1)
PreferredLanguageCode star:PreferredLanguageCode 0 (1)
SalesPersonLicenseNumberString star:SalesPersonLicenseNumberString 0 (1)
OrganizationID star:OrganizationID 0 (1)
OrganizationalPartyAlternatePartyId star:OrganizationalPartyAlternatePartyId 0 unbounded
DBAName star:DBAName 0 (1)
Collapse Derivation Tree:
Collapse References:
star:DealerExtendedContractsExt2
