Documentation for Standards for Technology in Automotive Retail
Definition Type: ComplexType
Name: DealerExtendedContractsType
Namespace: http://www.starstandard.org/STAR/5
Type: star:DealerExtendedAddressType
Containing Schema: DeprecatedComponents.xsd
Abstract
Documentation:
Deprecated: Use PartyABIEType

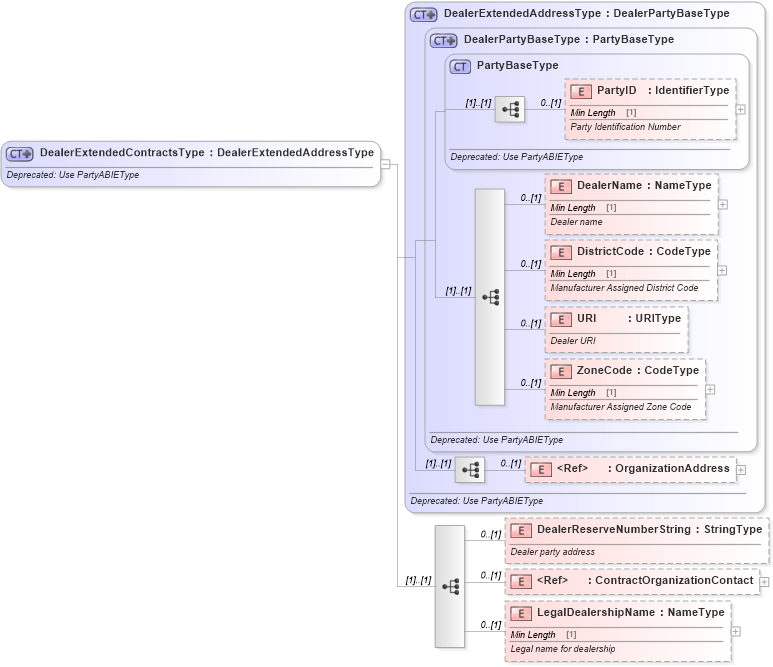

Collapse XSD Schema Diagram:
Drilldown into LegalDealershipName in schema deprecatedcomponents_xsd Drilldown into ContractOrganizationContact in schema deprecatedcomponents_xsd Drilldown into DealerReserveNumberString in schema deprecatedcomponents_xsd Drilldown into OrganizationAddress in schema deprecatedcomponents_xsd Drilldown into ZoneCode in schema deprecatedcomponents_xsd Drilldown into URI in schema deprecatedcomponents_xsd Drilldown into DistrictCode in schema deprecatedcomponents_xsd Drilldown into DealerName in schema deprecatedcomponents_xsd Drilldown into PartyID in schema deprecatedcomponents_xsd Drilldown into PartyBaseType in schema deprecatedcomponents_xsd Drilldown into DealerPartyBaseType in schema deprecatedcomponents_xsd Drilldown into DealerExtendedAddressType in schema deprecatedcomponents_xsdXSD Diagram of DealerExtendedContractsType in schema deprecatedcomponents_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:complexType name="DealerExtendedContractsType">
    <xsd:annotation>
        <xsd:documentation>Deprecated: Use PartyABIEType</xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="DealerExtendedAddressType">
            <xsd:sequence>
                <xsd:element minOccurs="0" name="DealerReserveNumberString" type="qdt:StringType">
                    <xsd:annotation>
                        <xsd:documentation>
                            <ccts:Definition xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Dealer party address</ccts:Definition>
                        </xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element minOccurs="0" ref="ContractOrganizationContact">
                    <xsd:annotation>
                        <xsd:documentation>
                            <ccts:Definition xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Organizational Party contact information</ccts:Definition>
                        </xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element minOccurs="0" name="LegalDealershipName" type="udt:NameType">
                    <xsd:annotation>
                        <xsd:documentation>
                            <ccts:Definition xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Legal name for dealership</ccts:Definition>
                        </xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
PartyID star:PartyID 0 (1)
DealerName star:DealerName 0 (1)
DistrictCode star:DistrictCode 0 (1)
URI star:URI 0 (1)
ZoneCode star:ZoneCode 0 (1)
OrganizationAddress star:OrganizationAddress 0 (1)
DealerReserveNumberString star:DealerReserveNumberString 0 (1)
ContractOrganizationContact star:ContractOrganizationContact 0 (1)
LegalDealershipName star:LegalDealershipName 0 (1)
Collapse Derivation Tree:
Collapse References:
star:DealerExtendedContracts
