Documentation for Standards for Technology in Automotive Retail
Definition Type: ComplexType
Name: DemographicsType
Namespace: http://www.starstandard.org/STAR/5
Containing Schema: DeprecatedComponents.xsd
Abstract
Documentation:
Deprecated. Should be redesigned in 6.0

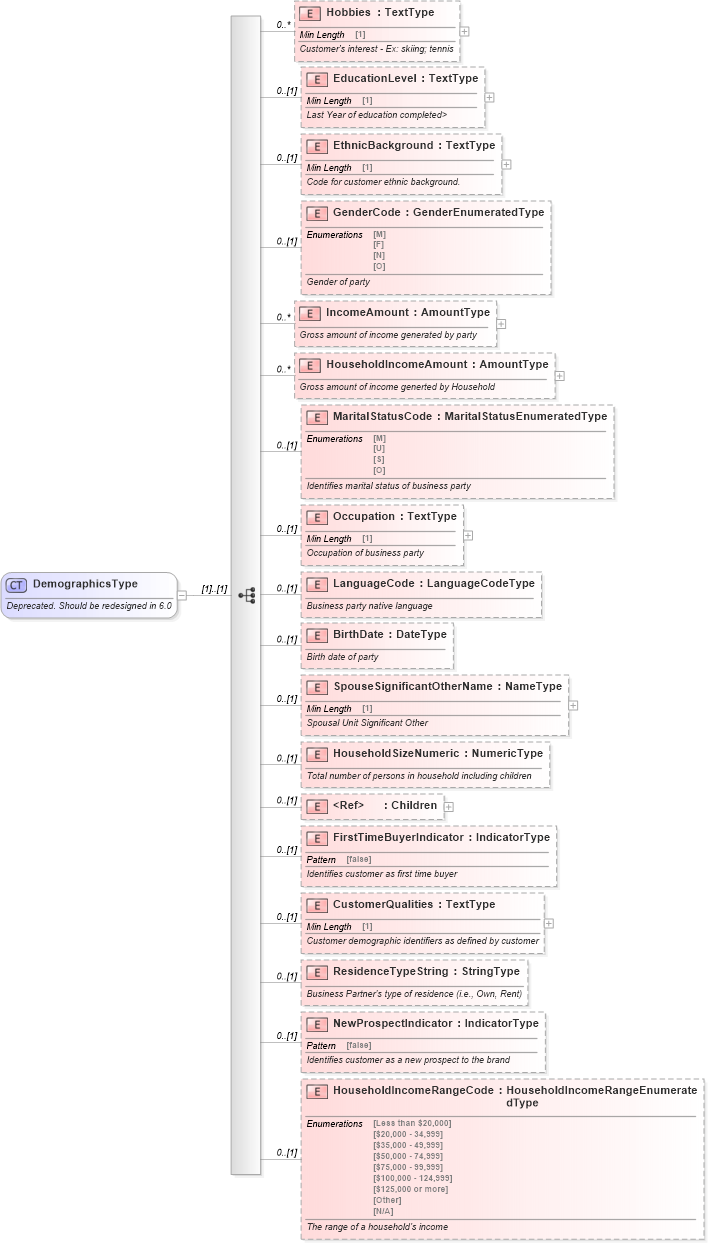

Collapse XSD Schema Diagram:
Drilldown into HouseholdIncomeRangeCode in schema deprecatedcomponents_xsd Drilldown into NewProspectIndicator in schema deprecatedcomponents_xsd Drilldown into ResidenceTypeString in schema deprecatedcomponents_xsd Drilldown into CustomerQualities in schema deprecatedcomponents_xsd Drilldown into FirstTimeBuyerIndicator in schema deprecatedcomponents_xsd Drilldown into Children in schema deprecatedcomponents_xsd Drilldown into HouseholdSizeNumeric in schema deprecatedcomponents_xsd Drilldown into SpouseSignificantOtherName in schema deprecatedcomponents_xsd Drilldown into BirthDate in schema deprecatedcomponents_xsd Drilldown into LanguageCode in schema deprecatedcomponents_xsd Drilldown into Occupation in schema deprecatedcomponents_xsd Drilldown into MaritalStatusCode in schema deprecatedcomponents_xsd Drilldown into HouseholdIncomeAmount in schema deprecatedcomponents_xsd Drilldown into IncomeAmount in schema deprecatedcomponents_xsd Drilldown into GenderCode in schema deprecatedcomponents_xsd Drilldown into EthnicBackground in schema deprecatedcomponents_xsd Drilldown into EducationLevel in schema deprecatedcomponents_xsd Drilldown into Hobbies in schema deprecatedcomponents_xsdXSD Diagram of DemographicsType in schema deprecatedcomponents_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:complexType name="DemographicsType">
    <xsd:annotation>
        <xsd:documentation>Deprecated. Should be redesigned in 6.0</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element maxOccurs="unbounded" minOccurs="0" name="Hobbies" type="udt:TextType">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Definition xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Customer's interest - Ex: skiing; tennis</ccts:Definition>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="EducationLevel" type="udt:TextType">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Definition xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Last Year of education completed&gt;</ccts:Definition>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="EthnicBackground" type="udt:TextType">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Definition xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Code for customer ethnic background.</ccts:Definition>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="GenderCode" type="scl:GenderEnumeratedType">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Definition xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Gender of party</ccts:Definition>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="unbounded" minOccurs="0" name="IncomeAmount" type="udt:AmountType">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Definition xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Gross amount of income generated by party</ccts:Definition>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="unbounded" minOccurs="0" name="HouseholdIncomeAmount" type="udt:AmountType">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Definition xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Gross amount of income generted by Household</ccts:Definition>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="MaritalStatusCode" type="scl:MaritalStatusEnumeratedType">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Definition xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Identifies marital status of business party</ccts:Definition>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="Occupation" type="udt:TextType">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Definition xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Occupation of business party</ccts:Definition>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="LanguageCode" type="sqdt:LanguageCodeType">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Definition xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Business party native language</ccts:Definition>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="BirthDate" type="udt:DateType">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Definition xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Birth date of party</ccts:Definition>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="SpouseSignificantOtherName" type="udt:NameType">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Definition xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Spousal Unit Significant Other</ccts:Definition>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="HouseholdSizeNumeric" type="udt:NumericType">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Definition xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Total number of persons in household including children</ccts:Definition>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" ref="Children">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Definition xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Children of party</ccts:Definition>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="FirstTimeBuyerIndicator" type="udt:IndicatorType">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Definition xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Identifies customer as first time buyer</ccts:Definition>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="CustomerQualities" type="udt:TextType">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Definition xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Customer demographic identifiers as defined by customer</ccts:Definition>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="ResidenceTypeString" type="qdt:StringType">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Definition xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Business Partner's type of residence (i.e., Own, Rent)</ccts:Definition>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="NewProspectIndicator" type="udt:IndicatorType">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Definition xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Identifies customer as a new prospect to the brand</ccts:Definition>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="HouseholdIncomeRangeCode" type="scl:HouseholdIncomeRangeEnumeratedType">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Definition xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">The range of a household's income</ccts:Definition>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Hobbies star:Hobbies 0 unbounded
EducationLevel star:EducationLevel 0 (1)
EthnicBackground star:EthnicBackground 0 (1)
GenderCode star:GenderCode 0 (1)
IncomeAmount star:IncomeAmount 0 unbounded
HouseholdIncomeAmount star:HouseholdIncomeAmount 0 unbounded
MaritalStatusCode star:MaritalStatusCode 0 (1)
Occupation star:Occupation 0 (1)
LanguageCode star:LanguageCode 0 (1)
BirthDate star:BirthDate 0 (1)
SpouseSignificantOtherName star:SpouseSignificantOtherName 0 (1)
HouseholdSizeNumeric star:HouseholdSizeNumeric 0 (1)
Children star:Children 0 (1)
FirstTimeBuyerIndicator star:FirstTimeBuyerIndicator 0 (1)
CustomerQualities star:CustomerQualities 0 (1)
ResidenceTypeString star:ResidenceTypeString 0 (1)
NewProspectIndicator star:NewProspectIndicator 0 (1)
HouseholdIncomeRangeCode star:HouseholdIncomeRangeCode 0 (1)
Collapse Derivation Tree:
Collapse References:
star:Demographics
