Documentation for Standards for Technology in Automotive Retail
Definition Type: Element
Name: Diagnostics
Namespace: http://www.starstandard.org/STAR/5
Type: star:DiagnosticsType
Containing Schema: Components.xsd
Abstract
Documentation:
Diagnostics from vehicle service associated with job

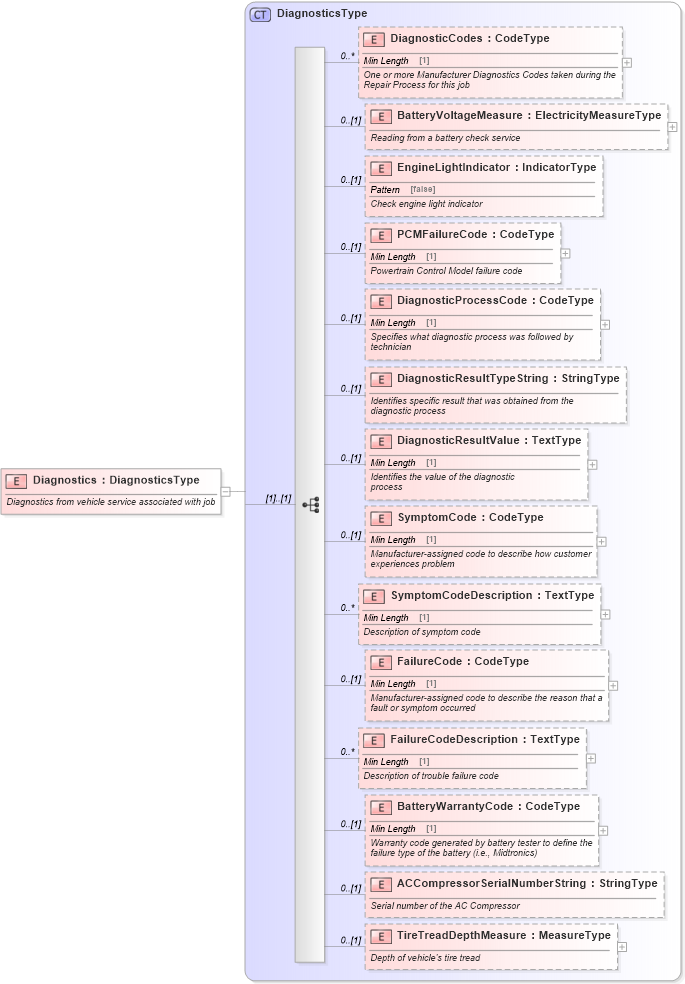

Collapse XSD Schema Diagram:
Drilldown into TireTreadDepthMeasure in schema components_xsd Drilldown into ACCompressorSerialNumberString in schema components_xsd Drilldown into BatteryWarrantyCode in schema components_xsd Drilldown into FailureCodeDescription in schema components_xsd Drilldown into FailureCode in schema components_xsd Drilldown into SymptomCodeDescription in schema components_xsd Drilldown into SymptomCode in schema components_xsd Drilldown into DiagnosticResultValue in schema components_xsd Drilldown into DiagnosticResultTypeString in schema components_xsd Drilldown into DiagnosticProcessCode in schema components_xsd Drilldown into PCMFailureCode in schema components_xsd Drilldown into EngineLightIndicator in schema components_xsd Drilldown into BatteryVoltageMeasure in schema components_xsd Drilldown into DiagnosticCodes in schema components_xsd Drilldown into DiagnosticsType in schema components_xsdXSD Diagram of Diagnostics in schema components_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:element name="Diagnostics" type="DiagnosticsType">
    <xsd:annotation>
        <xsd:documentation>Diagnostics from vehicle service associated with job</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DiagnosticCodes star:DiagnosticCodes 0 unbounded
BatteryVoltageMeasure star:BatteryVoltageMeasure 0 (1)
EngineLightIndicator star:EngineLightIndicator 0 (1)
PCMFailureCode star:PCMFailureCode 0 (1)
DiagnosticProcessCode star:DiagnosticProcessCode 0 (1)
DiagnosticResultTypeString star:DiagnosticResultTypeString 0 (1)
DiagnosticResultValue star:DiagnosticResultValue 0 (1)
SymptomCode star:SymptomCode 0 (1)
SymptomCodeDescription star:SymptomCodeDescription 0 unbounded
FailureCode star:FailureCode 0 (1)
FailureCodeDescription star:FailureCodeDescription 0 unbounded
BatteryWarrantyCode star:BatteryWarrantyCode 0 (1)
ACCompressorSerialNumberString star:ACCompressorSerialNumberString 0 (1)
TireTreadDepthMeasure star:TireTreadDepthMeasure 0 (1)
Collapse Derivation Tree:
