Definition Type: ComplexType
Name: DocumentIdentificationType
Namespace: http://www.starstandard.org/STAR/5
Containing Schema: Components.xsd
Abstract
Documentation:
An identifer for this document
Collapse XSD Schema Diagram:

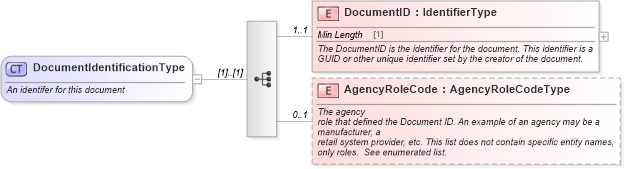

Drilldown into AgencyRoleCode in schema components_xsd Drilldown into DocumentID in schema components_xsdXSD Diagram of DocumentIdentificationType in schema components_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:complexType name="DocumentIdentificationType">
    <xsd:annotation>
        <xsd:documentation>An identifer for this document</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element maxOccurs="1" minOccurs="1" name="DocumentID" type="udt:IdentifierType">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/STAR/5">The DocumentID is the identifier for the document. This identifier is a GUID or other unique identifier set by the creator of the document.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="1" minOccurs="0" name="AgencyRoleCode" type="sqdt:AgencyRoleCodeType">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/STAR/5">The agency
                role that defined the Document ID. An example of an agency may be a manufacturer, a
                retail system provider, etc. This list does not contain specific entity names, only roles.  See enumerated list.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DocumentID star:DocumentID 1 1
AgencyRoleCode star:AgencyRoleCode 0 1
Collapse Derivation Tree:
Collapse References:
star:AlternateDocumentIdentification, star:DocumentIdentification
