Documentation for Standards for Technology in Automotive Retail
Definition Type: ComplexType
Name: DocumentType
Namespace: http://www.openapplications.org/oagis/9/reusableaggregatecorecomponentSchemaModule/0.1
Containing Schema: ReusableAggregateCoreComponent.xsd
Abstract

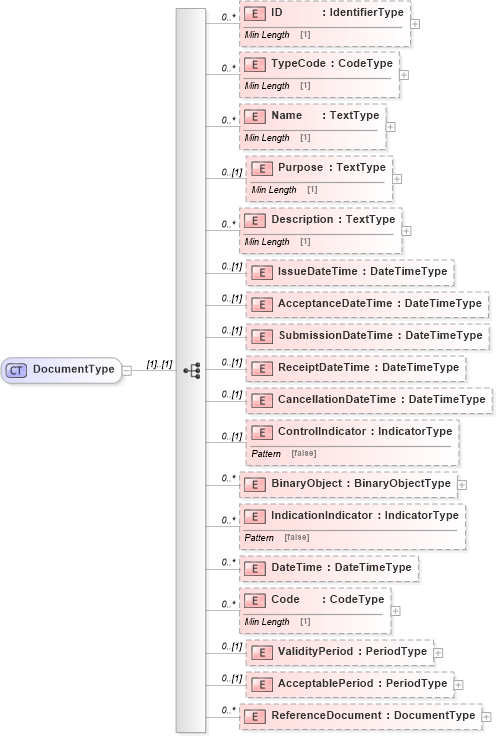

Collapse XSD Schema Diagram:
Drilldown into ReferenceDocument in schema reusableaggregatecorecomponent_xsd Drilldown into AcceptablePeriod in schema reusableaggregatecorecomponent_xsd Drilldown into ValidityPeriod in schema reusableaggregatecorecomponent_xsd Drilldown into Code in schema reusableaggregatecorecomponent_xsd Drilldown into DateTime in schema reusableaggregatecorecomponent_xsd Drilldown into IndicationIndicator in schema reusableaggregatecorecomponent_xsd Drilldown into BinaryObject in schema reusableaggregatecorecomponent_xsd Drilldown into ControlIndicator in schema reusableaggregatecorecomponent_xsd Drilldown into CancellationDateTime in schema reusableaggregatecorecomponent_xsd Drilldown into ReceiptDateTime in schema reusableaggregatecorecomponent_xsd Drilldown into SubmissionDateTime in schema reusableaggregatecorecomponent_xsd Drilldown into AcceptanceDateTime in schema reusableaggregatecorecomponent_xsd Drilldown into IssueDateTime in schema reusableaggregatecorecomponent_xsd Drilldown into Description in schema reusableaggregatecorecomponent_xsd Drilldown into Purpose in schema reusableaggregatecorecomponent_xsd Drilldown into Name in schema reusableaggregatecorecomponent_xsd Drilldown into TypeCode in schema reusableaggregatecorecomponent_xsd Drilldown into ID in schema reusableaggregatecorecomponent_xsdXSD Diagram of DocumentType in schema reusableaggregatecorecomponent_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:complexType name="DocumentType">
    <xsd:sequence>
        <xsd:element name="ID" type="udt:IdentifierType" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element name="TypeCode" type="udt:CodeType" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element name="Name" type="udt:TextType" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element name="Purpose" type="udt:TextType" minOccurs="0" />
        <xsd:element name="Description" type="udt:TextType" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element name="IssueDateTime" type="udt:DateTimeType" minOccurs="0" />
        <xsd:element name="AcceptanceDateTime" type="udt:DateTimeType" minOccurs="0" />
        <xsd:element name="SubmissionDateTime" type="udt:DateTimeType" minOccurs="0" />
        <xsd:element name="ReceiptDateTime" type="udt:DateTimeType" minOccurs="0" />
        <xsd:element name="CancellationDateTime" type="udt:DateTimeType" minOccurs="0" />
        <xsd:element name="ControlIndicator" type="udt:IndicatorType" minOccurs="0" />
        <xsd:element name="BinaryObject" type="udt:BinaryObjectType" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element name="IndicationIndicator" type="udt:IndicatorType" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element name="DateTime" type="udt:DateTimeType" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element name="Code" type="udt:CodeType" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element name="ValidityPeriod" type="rcm:PeriodType" minOccurs="0" />
        <xsd:element name="AcceptablePeriod" type="rcm:PeriodType" minOccurs="0" />
        <xsd:element name="ReferenceDocument" type="rcm:DocumentType" minOccurs="0" maxOccurs="unbounded" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ID rcm:ID 0 unbounded
TypeCode rcm:TypeCode 0 unbounded
Name rcm:Name 0 unbounded
Purpose rcm:Purpose 0 (1)
Description rcm:Description 0 unbounded
IssueDateTime rcm:IssueDateTime 0 (1)
AcceptanceDateTime rcm:AcceptanceDateTime 0 (1)
SubmissionDateTime rcm:SubmissionDateTime 0 (1)
ReceiptDateTime rcm:ReceiptDateTime 0 (1)
CancellationDateTime rcm:CancellationDateTime 0 (1)
ControlIndicator rcm:ControlIndicator 0 (1)
BinaryObject rcm:BinaryObject 0 unbounded
IndicationIndicator rcm:IndicationIndicator 0 unbounded
DateTime rcm:DateTime 0 unbounded
Code rcm:Code 0 unbounded
ValidityPeriod rcm:ValidityPeriod 0 (1)
AcceptablePeriod rcm:AcceptablePeriod 0 (1)
ReferenceDocument rcm:ReferenceDocument 0 unbounded
Collapse Derivation Tree:
Collapse References:
rcm:BillOfExchangeDocument, rcm:CertificateOfInsuranceDocument, rcm:CertificateOfOriginDocument, rcm:CertificateOfShipmentDocument, rcm:CommonShortFormBillOfLadingDocument, rcm:DangeriousGoodsNoteDocument, rcm:DespatchAdviceDocument, rcm:Document, rcm:Document, rcm:DocumentaryCreditDocument, rcm:DocumentDespatchNoticeDocument, rcm:EUR1Document, rcm:ExportLicenseDocument, rcm:FreightInvoiceDocument, rcm:FumigationCertificateDocument, rcm:HouseBillOfLadingDocument, rcm:ImportLicenseDocument, rcm:InspectionCertificateDocument, rcm:Non-NegotiableSeaWaybillDocument, rcm:OriginCertificateDocument, rcm:PhytosanitaryCertificateDocument, rcm:ReferenceDocument, rcm:ReferenceDocumentrcm:ReferenceDocument, rcm:ReferenceDocument, rcm:ReferenceDocument, rcm:ReferenceDocument, rcm:ShippingInstructionsDocument, rcm:ShippingNoteDocument, rcm:SingleAdministrativeDocument, rcm:TransportContractDocument, rcm:WineCertificateDocument, rcm:WoolHealthCertificateDocument,
