Documentation for Standards for Technology in Automotive Retail
Definition Type: Element
Name: EmergencyContact
Namespace: http://www.openapplications.org/oagis/9/reusableaggregatecorecomponentSchemaModule/0.1
Type: rcm:ContactType
Containing Schema: ReusableAggregateCoreComponent.xsd
MinOccurs 0
MaxOccurs (1)
Abstract

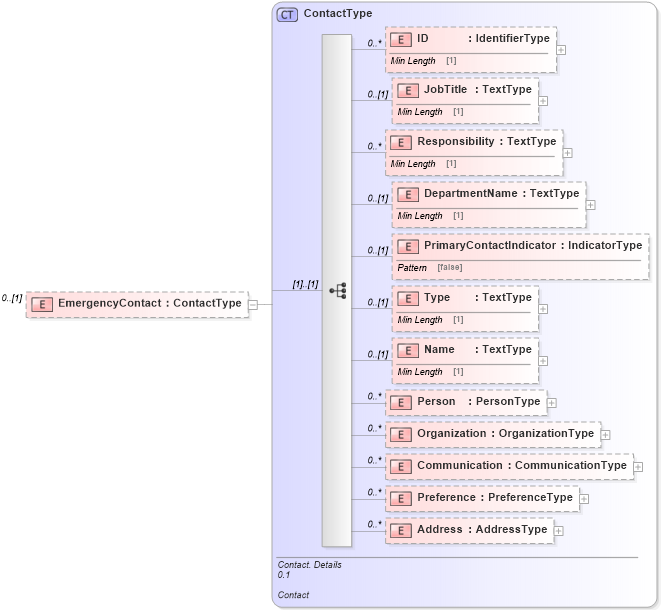

Collapse XSD Schema Diagram:
Drilldown into Address in schema reusableaggregatecorecomponent_xsd Drilldown into Preference in schema reusableaggregatecorecomponent_xsd Drilldown into Communication in schema reusableaggregatecorecomponent_xsd Drilldown into Organization in schema reusableaggregatecorecomponent_xsd Drilldown into Person in schema reusableaggregatecorecomponent_xsd Drilldown into Name in schema reusableaggregatecorecomponent_xsd Drilldown into Type in schema reusableaggregatecorecomponent_xsd Drilldown into PrimaryContactIndicator in schema reusableaggregatecorecomponent_xsd Drilldown into DepartmentName in schema reusableaggregatecorecomponent_xsd Drilldown into Responsibility in schema reusableaggregatecorecomponent_xsd Drilldown into JobTitle in schema reusableaggregatecorecomponent_xsd Drilldown into ID in schema reusableaggregatecorecomponent_xsd Drilldown into ContactType in schema reusableaggregatecorecomponent_xsdXSD Diagram of EmergencyContact in schema reusableaggregatecorecomponent_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:element name="EmergencyContact" type="rcm:ContactType" minOccurs="0" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ID rcm:ID 0 unbounded
JobTitle rcm:JobTitle 0 (1)
Responsibility rcm:Responsibility 0 unbounded
DepartmentName rcm:DepartmentName 0 (1)
PrimaryContactIndicator rcm:PrimaryContactIndicator 0 (1)
Type rcm:Type 0 (1)
Name rcm:Name 0 (1)
Person rcm:Person 0 unbounded
Organization rcm:Organization 0 unbounded
Communication rcm:Communication 0 unbounded
Preference rcm:Preference 0 unbounded
Address rcm:Address 0 unbounded
Collapse Derivation Tree:
