Definition Type: Element
Name: Facility
Namespace: http://www.starstandard.org/STAR/5
Type: star:FacilityOAGIType
Containing Schema: Components.xsd
Abstract
Documentation:
A Facility identifies a location within an entity. The facility may have sub-locators identified using a sequenced identification notation e.g. Warehouse A100 Sub-Location 11, Row R10 would be represented as an array of three Facility elements with values as A100, 11, R10, name attribute as Warehouse, Sub-Location and Row and sequence attribute as 1,2 and 3 respectively.

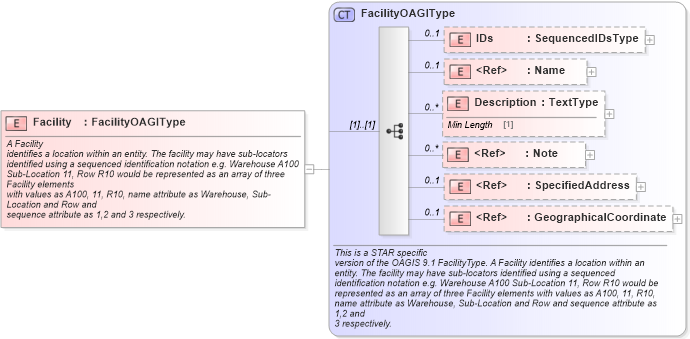

Collapse XSD Schema Diagram:
Drilldown into GeographicalCoordinate in schema components_xsd Drilldown into SpecifiedAddress in schema components_xsd Drilldown into Note in schema fields_xsd1 Drilldown into Description in schema components_xsd Drilldown into Name in schema fields_xsd1 Drilldown into IDs in schema components_xsd Drilldown into FacilityOAGIType in schema components_xsdXSD Diagram of Facility in schema components_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:element name="Facility" type="FacilityOAGIType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9"> A Facility
                identifies a location within an entity. The facility may have sub-locators
                identified using a sequenced identification notation e.g. Warehouse A100
                Sub-Location 11, Row R10 would be represented as an array of three Facility elements
                with values as A100, 11, R10, name attribute as Warehouse, Sub-Location and Row and
                sequence attribute as 1,2 and 3 respectively. </xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
IDs star:IDs 0 1
Name oagis:Name 0 1
Description star:Description 0 unbounded
Note oagis:Note 0 unbounded
SpecifiedAddress star:SpecifiedAddress 0 1
GeographicalCoordinate star:GeographicalCoordinate 0 1
Collapse Derivation Tree:
