Documentation for Standards for Technology in Automotive Retail
Definition Type: Element
Name: FinalAgentFinancialParty
Namespace: http://www.openapplications.org/oagis/9
Type: oagis:FinancialPartyType
Containing Schema: Components.xsd
Abstract
Documentation:
Financial institution that receives the payment transaction on behalf of an account owner, and posts the transaction to the account.

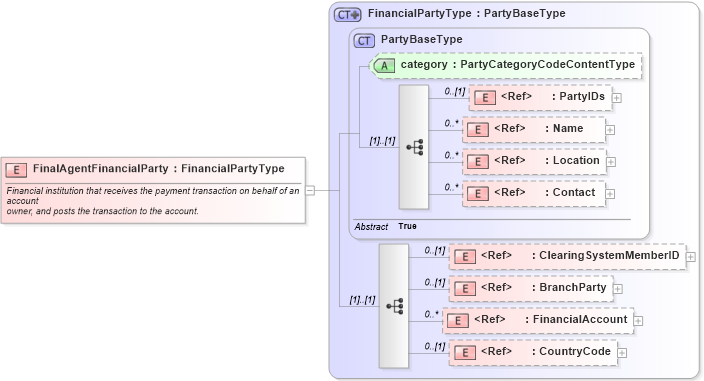

Collapse XSD Schema Diagram:
Drilldown into CountryCode in schema fields_xsd1 Drilldown into FinancialAccount in schema components_xsd1 Drilldown into BranchParty in schema components_xsd1 Drilldown into ClearingSystemMemberID in schema fields_xsd1 Drilldown into Contact in schema components_xsd1 Drilldown into Location in schema components_xsd1 Drilldown into Name in schema fields_xsd1 Drilldown into PartyIDs in schema components_xsd1 Drilldown into category in schema components_xsd1 Drilldown into PartyBaseType in schema components_xsd1 Drilldown into FinancialPartyType in schema components_xsd1XSD Diagram of FinalAgentFinancialParty in schema components_xsd1 (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:element name="FinalAgentFinancialParty" type="FinancialPartyType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">
            Financial institution that receives the payment transaction on behalf of an account
            owner, and posts the transaction to the account.
         </xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
PartyIDs oagis:PartyIDs 0 (1)
Name oagis:Name 0 unbounded
Location oagis:Location 0 unbounded
Contact oagis:Contact 0 unbounded
ClearingSystemMemberID oagis:ClearingSystemMemberID 0 (1)
BranchParty oagis:BranchParty 0 (1)
FinancialAccount oagis:FinancialAccount 0 unbounded
CountryCode oagis:CountryCode 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
category oagis:category (Optional)
Collapse Derivation Tree:
