Documentation for Standards for Technology in Automotive Retail
Definition Type: ComplexType
Name: FuelConsumptionMeasureType
Namespace: http://www.starstandard.org/STAR/5/qualifieddatatypes/1.0
Type: decimal:http://www.w3.org/2001/XMLSchema
Containing Schema: QualifiedDataTypes.xsd
Abstract
Documentation:
Used to indicates fuel consumption speed.

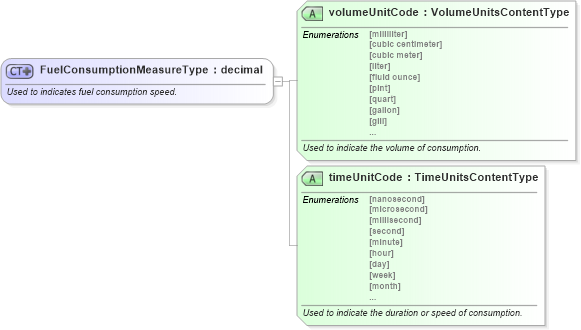

Collapse XSD Schema Diagram:
Drilldown into timeUnitCode in schema qualifieddatatypes_xsd Drilldown into volumeUnitCode in schema qualifieddatatypes_xsdXSD Diagram of FuelConsumptionMeasureType in schema qualifieddatatypes_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:complexType name="FuelConsumptionMeasureType">
    <xsd:annotation>
        <xsd:documentation>Used to indicates fuel consumption speed.</xsd:documentation>
    </xsd:annotation>
    <xsd:simpleContent>
        <xsd:extension base="xsd:decimal">
            <xsd:attribute name="volumeUnitCode" type="xfUOMcl:VolumeUnitsContentType" use="required">
                <xsd:annotation>
                    <xsd:documentation xml:lang="en">Used to indicate the volume of consumption.</xsd:documentation>
                </xsd:annotation>
            </xsd:attribute>
            <xsd:attribute name="timeUnitCode" type="xfUOMcl:TimeUnitsContentType" use="required">
                <xsd:annotation>
                    <xsd:documentation xml:lang="en">Used to indicate the duration or speed of consumption.</xsd:documentation>
                </xsd:annotation>
            </xsd:attribute>
        </xsd:extension>
    </xsd:simpleContent>
</xsd:complexType>
Collapse Child Attributes:
Name Type Default Value Use
volumeUnitCode sqdt:volumeUnitCode Required
timeUnitCode sqdt:timeUnitCode Required
Collapse Derivation Tree:
Collapse References:
star:FuelConsumptionMeasure, star:FuelConsumptionMeasure
