Documentation for Standards for Technology in Automotive Retail
Definition Type: ComplexType
Name: ImageAttachmentType
Namespace: http://www.openapplications.org/oagis/9
Type: oagis:AttachmentBaseType
Containing Schema: Components.xsd
Abstract

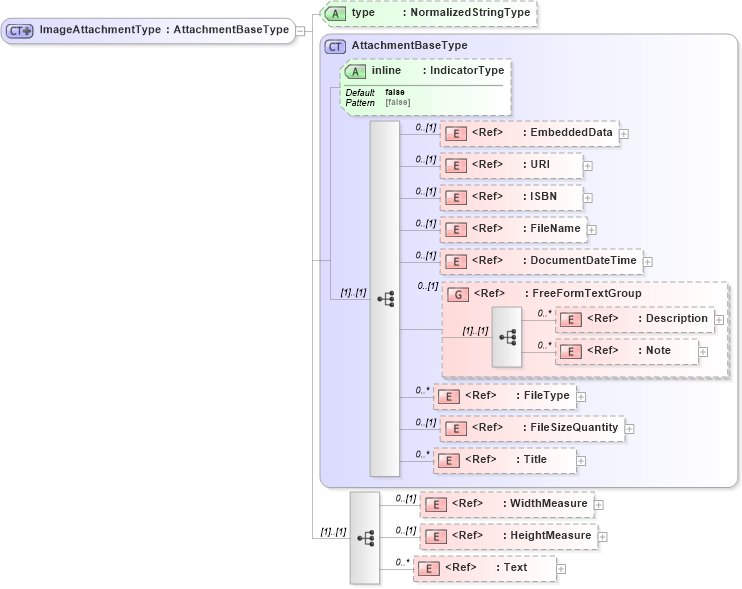

Collapse XSD Schema Diagram:
Drilldown into Text in schema fields_xsd1 Drilldown into HeightMeasure in schema fields_xsd1 Drilldown into WidthMeasure in schema fields_xsd1 Drilldown into Title in schema fields_xsd1 Drilldown into FileSizeQuantity in schema fields_xsd1 Drilldown into FileType in schema fields_xsd1 Drilldown into Note in schema fields_xsd1 Drilldown into Description in schema fields_xsd1 Drilldown into FreeFormTextGroup in schema meta_xsd1 Drilldown into DocumentDateTime in schema fields_xsd1 Drilldown into FileName in schema fields_xsd1 Drilldown into ISBN in schema fields_xsd1 Drilldown into URI in schema fields_xsd1 Drilldown into EmbeddedData in schema fields_xsd1 Drilldown into inline in schema components_xsd1 Drilldown into AttachmentBaseType in schema components_xsd1 Drilldown into type in schema components_xsd1XSD Diagram of ImageAttachmentType in schema components_xsd1 (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:complexType name="ImageAttachmentType">
    <xsd:complexContent>
        <xsd:extension base="AttachmentBaseType">
            <xsd:sequence>
                <xsd:element minOccurs="0" ref="WidthMeasure" />
                <xsd:element minOccurs="0" ref="HeightMeasure" />
                <xsd:element maxOccurs="unbounded" minOccurs="0" ref="Text" />
                <!-- <xsd:element ref="UserArea" minOccurs="0" /> -->
            </xsd:sequence>
            <xsd:attribute name="type" type="NormalizedStringType" use="optional" />
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
EmbeddedData oagis:EmbeddedData 0 (1)
URI oagis:URI 0 (1)
ISBN oagis:ISBN 0 (1)
FileName oagis:FileName 0 (1)
DocumentDateTime oagis:DocumentDateTime 0 (1)
Description oagis:Description 0 unbounded
Note oagis:Note 0 unbounded
FileType oagis:FileType 0 unbounded
FileSizeQuantity oagis:FileSizeQuantity 0 (1)
Title oagis:Title 0 unbounded
WidthMeasure oagis:WidthMeasure 0 (1)
HeightMeasure oagis:HeightMeasure 0 (1)
Text oagis:Text 0 unbounded
<xs:group> oagis:FreeFormTextGroup 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
inline oagis:inline false (Optional)
type oagis:type Optional
Collapse Derivation Tree:
Collapse References:
oagis:ImageAttachment
