Documentation for Standards for Technology in Automotive Retail
Definition Type: ComplexType
Name: InitiativeStatusType
Namespace: http://www.starstandard.org/STAR/5
Containing Schema: Components.xsd
Abstract

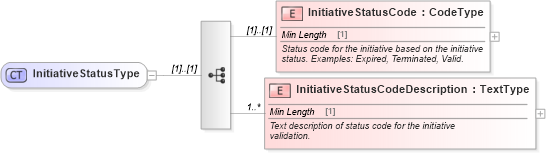

Collapse XSD Schema Diagram:
Drilldown into InitiativeStatusCodeDescription in schema components_xsd Drilldown into InitiativeStatusCode in schema components_xsdXSD Diagram of InitiativeStatusType in schema components_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:complexType name="InitiativeStatusType">
    <xsd:sequence>
        <xsd:element name="InitiativeStatusCode" type="udt:CodeType">
            <xsd:annotation>
                <xsd:documentation>
                        Status code for the initiative based on the initiative
                            status. Examples: Expired, Terminated, Valid.
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="unbounded" minOccurs="1" name="InitiativeStatusCodeDescription" type="udt:TextType">
            <xsd:annotation>
                <xsd:documentation>
                        Text description of status code for the initiative
                            validation.
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
InitiativeStatusCode star:InitiativeStatusCode (1) (1)
InitiativeStatusCodeDescription star:InitiativeStatusCodeDescription 1 unbounded
Collapse Derivation Tree:
Collapse References:
star:InitiativeStatus
