Documentation for Standards for Technology in Automotive Retail
Definition Type: Element
Name: InQueueLocation
Namespace: http://www.openapplications.org/oagis/9
Type: oagis:LocationType
Containing Schema: Components.xsd
Abstract
Documentation:
Is the location that the associated entity receives raw material from. In the case of an Operation is the location that the Operation receives it's raw materials. In order to produce the specified widget the corresponding raw materials must be available at the given location.

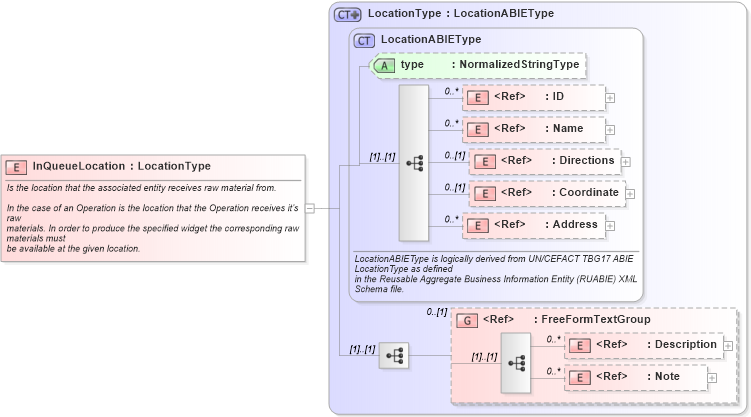

Collapse XSD Schema Diagram:
Drilldown into Note in schema fields_xsd1 Drilldown into Description in schema fields_xsd1 Drilldown into FreeFormTextGroup in schema meta_xsd1 Drilldown into Address in schema components_xsd1 Drilldown into Coordinate in schema components_xsd1 Drilldown into Directions in schema fields_xsd1 Drilldown into Name in schema fields_xsd1 Drilldown into ID in schema fields_xsd1 Drilldown into type in schema components_xsd1 Drilldown into LocationABIEType in schema components_xsd1 Drilldown into LocationType in schema components_xsd1XSD Diagram of InQueueLocation in schema components_xsd1 (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:element name="InQueueLocation" type="LocationType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">
            Is the location that the associated entity receives raw material from.

            In the case of an Operation is the location that the Operation receives it's raw
            materials. In order to produce the specified widget the corresponding raw materials must
            be available at the given location.
         </xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ID oagis:ID 0 unbounded
Name oagis:Name 0 unbounded
Directions oagis:Directions 0 (1)
Coordinate oagis:Coordinate 0 (1)
Address oagis:Address 0 unbounded
Description oagis:Description 0 unbounded
Note oagis:Note 0 unbounded
<xs:group> oagis:FreeFormTextGroup 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
type oagis:type (Optional)
Collapse Derivation Tree:
