Documentation for Standards for Technology in Automotive Retail
Definition Type: ComplexType
Name: InsuranceDetailType
Namespace: http://www.starstandard.org/STAR/5
Containing Schema: Components.xsd
Abstract

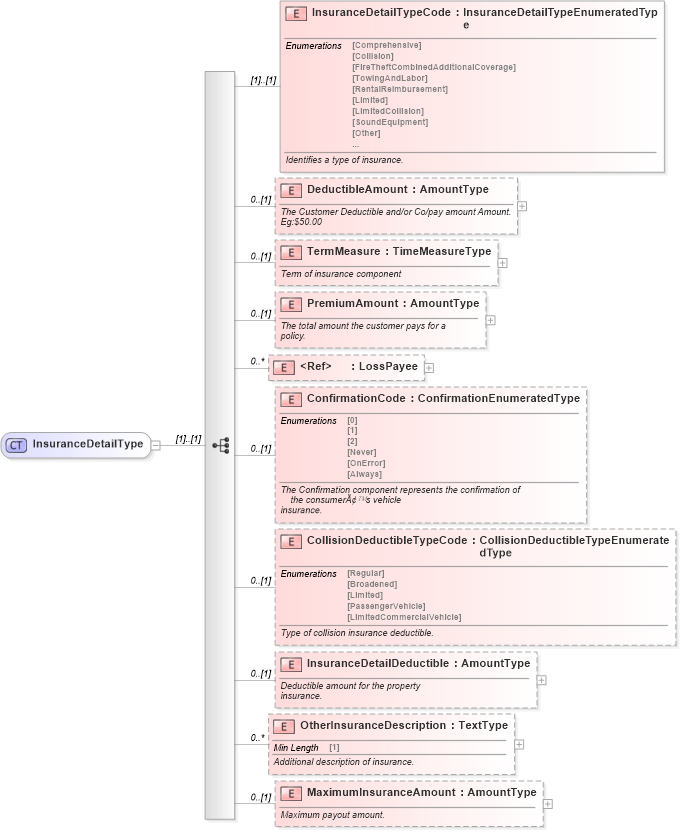

Collapse XSD Schema Diagram:
Drilldown into MaximumInsuranceAmount in schema components_xsd Drilldown into OtherInsuranceDescription in schema components_xsd Drilldown into InsuranceDetailDeductible in schema components_xsd Drilldown into CollisionDeductibleTypeCode in schema components_xsd Drilldown into ConfirmationCode in schema components_xsd Drilldown into LossPayee in schema components_xsd Drilldown into PremiumAmount in schema components_xsd Drilldown into TermMeasure in schema components_xsd Drilldown into DeductibleAmount in schema components_xsd Drilldown into InsuranceDetailTypeCode in schema components_xsdXSD Diagram of InsuranceDetailType in schema components_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:complexType name="InsuranceDetailType">
    <xsd:sequence>
        <xsd:element name="InsuranceDetailTypeCode" type="scl:InsuranceDetailTypeEnumeratedType">
            <xsd:annotation>
                <xsd:documentation>
                        Identifies a type of insurance.
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="DeductibleAmount" type="udt:AmountType">
            <xsd:annotation>
                <xsd:documentation>
                        The Customer Deductible and/or Co/pay amount Amount.
                            Eg:$50.00
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="TermMeasure" type="sqdt:TimeMeasureType">
            <xsd:annotation>
                <xsd:documentation>
                        Term of insurance component
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="PremiumAmount" type="udt:AmountType">
            <xsd:annotation>
                <xsd:documentation>
                        The total amount the customer pays for a
                        policy.
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="unbounded" minOccurs="0" ref="LossPayee">
            <xsd:annotation>
                <xsd:documentation>
                        The LossPayee component represents the entity that is named
                            as a payee in the event of a loss.
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="ConfirmationCode" type="scl:ConfirmationEnumeratedType">
            <xsd:annotation>
                <xsd:documentation>
                        The Confirmation component represents the confirmation of
                            the consumerâ??s vehicle
                        insurance.
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="CollisionDeductibleTypeCode" type="scl:CollisionDeductibleTypeEnumeratedType">
            <xsd:annotation>
                <xsd:documentation>
                        Type of collision insurance deductible.
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="InsuranceDetailDeductible" type="udt:AmountType">
            <xsd:annotation>
                <xsd:documentation>
                        Deductible amount for the property
                        insurance.
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="unbounded" minOccurs="0" name="OtherInsuranceDescription" type="udt:TextType">
            <xsd:annotation>
                <xsd:documentation>
                        Additional description of insurance.
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="MaximumInsuranceAmount" type="udt:AmountType">
            <xsd:annotation>
                <xsd:documentation>
                        Maximum payout amount.
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
InsuranceDetailTypeCode star:InsuranceDetailTypeCode (1) (1)
DeductibleAmount star:DeductibleAmount 0 (1)
TermMeasure star:TermMeasure 0 (1)
PremiumAmount star:PremiumAmount 0 (1)
LossPayee star:LossPayee 0 unbounded
ConfirmationCode star:ConfirmationCode 0 (1)
CollisionDeductibleTypeCode star:CollisionDeductibleTypeCode 0 (1)
InsuranceDetailDeductible star:InsuranceDetailDeductible 0 (1)
OtherInsuranceDescription star:OtherInsuranceDescription 0 unbounded
MaximumInsuranceAmount star:MaximumInsuranceAmount 0 (1)
Collapse Derivation Tree:
Collapse References:
star:InsuranceDetail
