Documentation for Standards for Technology in Automotive Retail
Definition Type: ComplexType
Name: InventoryItemIDsType
Namespace: http://www.openapplications.org/oagis/9
Type: oagis:InventoryItemIDsBaseType
Containing Schema: Components.xsd
Abstract

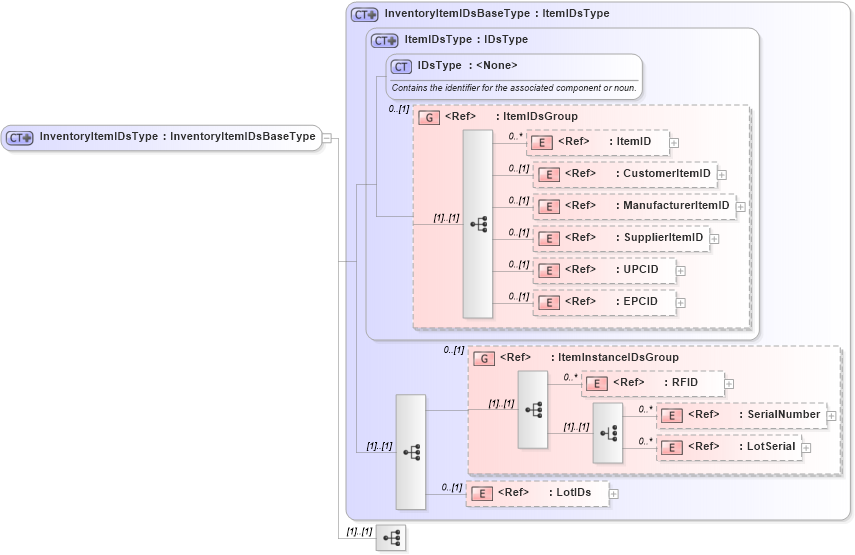

Collapse XSD Schema Diagram:
Drilldown into LotIDs in schema components_xsd1 Drilldown into LotSerial in schema components_xsd1 Drilldown into SerialNumber in schema fields_xsd1 Drilldown into RFID in schema fields_xsd1 Drilldown into ItemInstanceIDsGroup in schema components_xsd1 Drilldown into EPCID in schema fields_xsd1 Drilldown into UPCID in schema fields_xsd1 Drilldown into SupplierItemID in schema components_xsd1 Drilldown into ManufacturerItemID in schema components_xsd1 Drilldown into CustomerItemID in schema components_xsd1 Drilldown into ItemID in schema components_xsd1 Drilldown into ItemIDsGroup in schema components_xsd1 Drilldown into IDsType in schema components_xsd1 Drilldown into ItemIDsType in schema components_xsd1 Drilldown into InventoryItemIDsBaseType in schema components_xsd1XSD Diagram of InventoryItemIDsType in schema components_xsd1 (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:complexType name="InventoryItemIDsType">
    <xsd:complexContent>
        <xsd:extension base="InventoryItemIDsBaseType">
            <xsd:sequence>
                <!-- <xsd:element ref="UserArea" minOccurs="0" /> -->
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ItemID oagis:ItemID 0 unbounded
CustomerItemID oagis:CustomerItemID 0 (1)
ManufacturerItemID oagis:ManufacturerItemID 0 (1)
SupplierItemID oagis:SupplierItemID 0 (1)
UPCID oagis:UPCID 0 (1)
EPCID oagis:EPCID 0 (1)
RFID oagis:RFID 0 unbounded
SerialNumber oagis:SerialNumber 0 unbounded
LotSerial oagis:LotSerial 0 unbounded
LotIDs oagis:LotIDs 0 (1)
<xs:group> oagis:ItemInstanceIDsGroup 0 (1)
Collapse Derivation Tree:
Collapse References:
oagis:InventoryItemIDs
