Documentation for Standards for Technology in Automotive Retail
Definition Type: ComplexType
Name: ItemIdentificationType
Namespace: http://www.starstandard.org/STAR/5
Containing Schema: Components.xsd
Abstract
Documentation:
An identifer for an item.

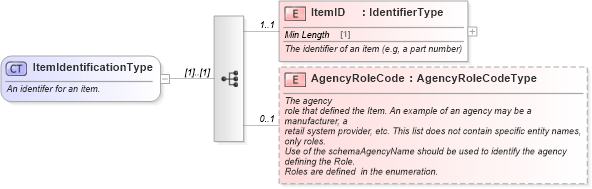

Collapse XSD Schema Diagram:
Drilldown into AgencyRoleCode in schema components_xsd Drilldown into ItemID in schema components_xsdXSD Diagram of ItemIdentificationType in schema components_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:complexType name="ItemIdentificationType">
    <xsd:annotation>
        <xsd:documentation>An identifer for an item.</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element maxOccurs="1" minOccurs="1" name="ItemID" type="udt:IdentifierType">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/STAR/5">The identifier of an item (e.g, a part number)</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="1" minOccurs="0" name="AgencyRoleCode" type="sqdt:AgencyRoleCodeType">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/STAR/5">The agency
                role that defined the Item. An example of an agency may be a manufacturer, a
                retail system provider, etc. This list does not contain specific entity names, only roles.
                Use of the schemaAgencyName should be used to identify the agency defining the Role.
                Roles are defined  in the enumeration.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ItemID star:ItemID 1 1
AgencyRoleCode star:AgencyRoleCode 0 1
Collapse Derivation Tree:
Collapse References:
star:ItemIdentification
