Documentation for Standards for Technology in Automotive Retail
Definition Type: ComplexType
Name: JobReconciliationType
Namespace: http://www.starstandard.org/STAR/5
Containing Schema: Components.xsd
Abstract

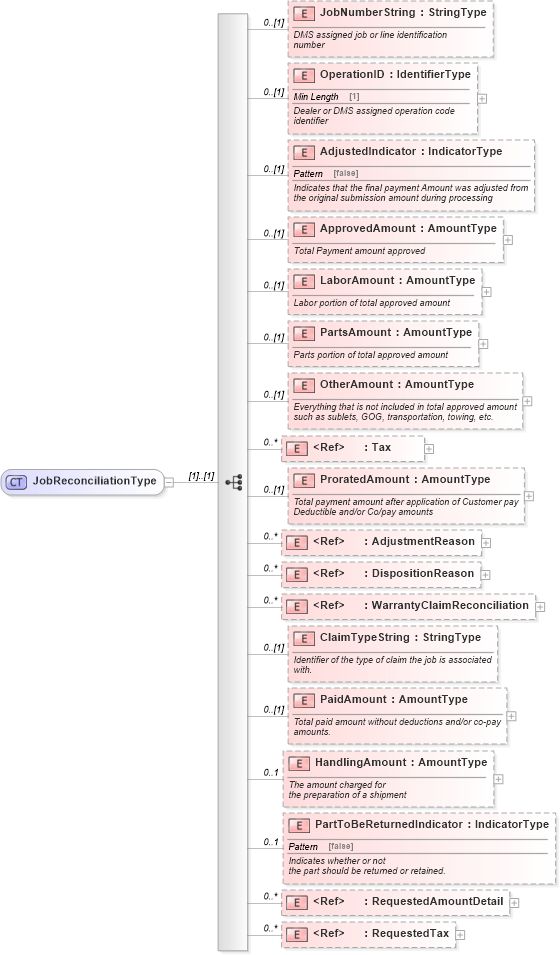

Collapse XSD Schema Diagram:
Drilldown into RequestedTax in schema components_xsd Drilldown into RequestedAmountDetail in schema components_xsd Drilldown into PartToBeReturnedIndicator in schema components_xsd Drilldown into HandlingAmount in schema components_xsd Drilldown into PaidAmount in schema components_xsd Drilldown into ClaimTypeString in schema components_xsd Drilldown into WarrantyClaimReconciliation in schema components_xsd Drilldown into DispositionReason in schema components_xsd Drilldown into AdjustmentReason in schema components_xsd Drilldown into ProratedAmount in schema components_xsd Drilldown into Tax in schema components_xsd Drilldown into OtherAmount in schema components_xsd Drilldown into PartsAmount in schema components_xsd Drilldown into LaborAmount in schema components_xsd Drilldown into ApprovedAmount in schema components_xsd Drilldown into AdjustedIndicator in schema components_xsd Drilldown into OperationID in schema components_xsd Drilldown into JobNumberString in schema components_xsdXSD Diagram of JobReconciliationType in schema components_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:complexType name="JobReconciliationType">
    <xsd:sequence>
        <xsd:element minOccurs="0" name="JobNumberString" type="qdt:StringType">
            <xsd:annotation>
                <xsd:documentation>
                        DMS assigned job or line identification
                        number
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="OperationID" type="udt:IdentifierType">
            <xsd:annotation>
                <xsd:documentation>
                        Dealer or DMS assigned operation code
                        identifier
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="AdjustedIndicator" type="udt:IndicatorType">
            <xsd:annotation>
                <xsd:documentation>
                        Indicates that the final payment Amount was adjusted from
                            the original submission amount during processing
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="ApprovedAmount" type="udt:AmountType">
            <xsd:annotation>
                <xsd:documentation>
                        Total Payment amount approved
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="LaborAmount" type="udt:AmountType">
            <xsd:annotation>
                <xsd:documentation>
                        Labor portion of total approved amount
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="PartsAmount" type="udt:AmountType">
            <xsd:annotation>
                <xsd:documentation>
                        Parts portion of total approved amount
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="OtherAmount" type="udt:AmountType">
            <xsd:annotation>
                <xsd:documentation>
                        Everything that is not included in total approved amount
                            such as sublets, GOG, transportation, towing, etc.
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="unbounded" minOccurs="0" ref="Tax">
            <xsd:annotation>
                <xsd:documentation>
                        Amount of job tax for total, labor, parts, prorated and
                            other.
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="ProratedAmount" type="udt:AmountType">
            <xsd:annotation>
                <xsd:documentation>
                        Total payment amount after application of Customer pay
                            Deductible and/or Co/pay amounts
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="unbounded" minOccurs="0" ref="AdjustmentReason">
            <xsd:annotation>
                <xsd:documentation>
                        Reason that adjustment was made on
                        request
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="unbounded" minOccurs="0" ref="DispositionReason">
            <xsd:annotation>
                <xsd:documentation>
                        Reason that disposition was changed on
                        request
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="unbounded" minOccurs="0" ref="WarrantyClaimReconciliation">
            <xsd:annotation>
                <xsd:documentation>
                        Warranty Claim information associated with
                        Job
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="ClaimTypeString" type="qdt:StringType">
            <xsd:annotation>
                <xsd:documentation>
                        Identifier of the type of claim the job is associated
                        with.
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="PaidAmount" type="udt:AmountType">
            <xsd:annotation>
                <xsd:documentation>
                        Total paid amount without deductions and/or co-pay
                        amounts.
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="1" minOccurs="0" name="HandlingAmount" type="udt:AmountType">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/STAR/5">The amount charged for
                the preparation of a shipment</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="1" minOccurs="0" name="PartToBeReturnedIndicator" type="udt:IndicatorType">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Indicates whether or not
                the part should be returned or retained.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="unbounded" minOccurs="0" ref="RequestedAmountDetail" />
        <xsd:element maxOccurs="unbounded" minOccurs="0" ref="RequestedTax" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
JobNumberString star:JobNumberString 0 (1)
OperationID star:OperationID 0 (1)
AdjustedIndicator star:AdjustedIndicator 0 (1)
ApprovedAmount star:ApprovedAmount 0 (1)
LaborAmount star:LaborAmount 0 (1)
PartsAmount star:PartsAmount 0 (1)
OtherAmount star:OtherAmount 0 (1)
Tax star:Tax 0 unbounded
ProratedAmount star:ProratedAmount 0 (1)
AdjustmentReason star:AdjustmentReason 0 unbounded
DispositionReason star:DispositionReason 0 unbounded
WarrantyClaimReconciliation star:WarrantyClaimReconciliation 0 unbounded
ClaimTypeString star:ClaimTypeString 0 (1)
PaidAmount star:PaidAmount 0 (1)
HandlingAmount star:HandlingAmount 0 1
PartToBeReturnedIndicator star:PartToBeReturnedIndicator 0 1
RequestedAmountDetail star:RequestedAmountDetail 0 unbounded
RequestedTax star:RequestedTax 0 unbounded
Collapse Derivation Tree:
Collapse References:
star:JobReconciliation
