<xsd:element name="List" type="oagis:ListType">
<xsd:annotation>
<xsd:documentation source="http://www.openapplications.org/oagis/9.0">In an effort to simpilify the usage of the verbs the List verb is
being depricated as of OAGIS 9.0, the List will still be provided for the next three releases at which time
it is scheduled to be removed from OAGIS. As such for all new development we recommend that you use the Show
verb which may serve the same function of the List verb has in the past. The purpose of the List verb is to
enable a business software component to respond to a GetList request or to proactively send a listing of
summary information containing many instances of occurrences of data for a noun to one or more other
business software components.The results of a List may then be used as is, or they may be used to select a
specific instance of a document or entity in order to issue a detail Get request.Although BODs based on this
verb do not commonly cause updates to occur, there may be times when the component receiving the List
decides to use the information it receives to update. This is entirely the decision of the receiving
software component and is not forbidden.The behavior of the List verb is quite straight forward with a few
exceptions. The List response to any GetList request needs to read the request carefully to ensure the
response is returning the requested Data Types. The List needs to ensure the response to the GetList does
not exceed the maxItems value.The List needs to find the specific Field Identifiers that are used for the
Field-Based Selection or Range-Based Selection and process them accordingly. The attributes associated with
the List BODs are as follows: o rsstart attribute is a number that idicates the starting record for the
section of the resulting set returned in the list message. This value should always match the rsstart value
in the originating GetList BOD. o rscount attribute is a number that indicates the number of records
returned in the message. The subsequent request for additional records should have a rsstart value of
rscount + 1. o rstotal attribute is a number that indicates the total number of records in the result set. o
rscomplete attribute is a Boolean that indicates that the list provided exhaust the possible values. o rsref
attribute is a string that represents the implementation-specific result set identifier for subsequent
requests.</xsd:documentation>
<xsd:documentation>The OAGIS Meta Data documentation has more information in regards to this verbs usage and
structure.</xsd:documentation>
</xsd:annotation>
</xsd:element>
|

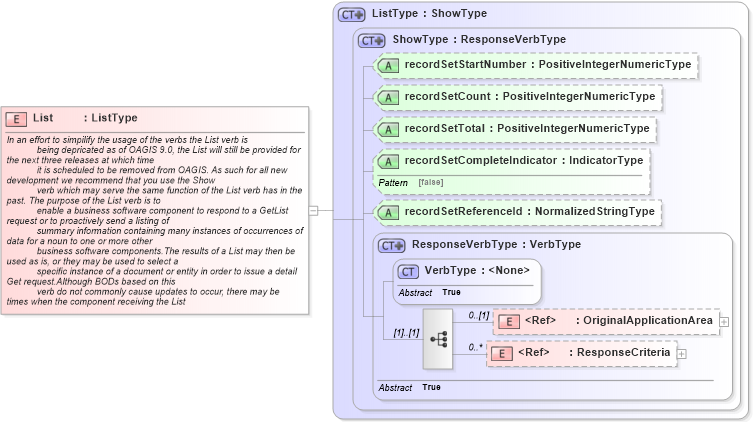

XSD Schema Diagram:
