Documentation for Standards for Technology in Automotive Retail
Definition Type: Element
Name: List
Namespace: http://www.openapplications.org/oagis/9
Type: oagis:ListType
Containing Schema: Meta.xsd
Abstract
Documentation:
In an effort to simpilify the usage of the verbs the List verb is being deprecated as of OAGIS 9.0, the List will still be provided for the next three releases at which time it is scheduled to be removed from OAGIS. As such for all new development we recommend that you use the Show verb which may serve the same function of the List verb has in the past. The purpose of the List verb is to enable a business software component to respond to a GetList request or to proactively send a listing of summary information containing many instances of occurrences of data for a noun to one or more other business software components.The results of a List may then be used as is, or they may be used to select a specific instance of a document or entity in order to issue a detail Get request.Although BODs based on this verb do not commonly cause updates to occur, there may be times when the component receiving the List decides to use the information it receives to update. This is entirely the decision of the receiving software component and is not forbidden.The behavior of the List verb is quite straight forward with a few exceptions. The List response to any GetList request needs to read the request carefully to ensure the response is returning the requested Data Types. The List needs to ensure the response to the GetList does not exceed the maxItems value.The List needs to find the specific Field Identifiers that are used for the Field-Based Selection or Range-Based Selection and process them accordingly. The attributes associated with the List BODs are as follows: o rsstart attribute is a number that idicates the starting record for the section of the resulting set returned in the list message. This value should always match the rsstart value in the originating GetList BOD. o rscount attribute is a number that indicates the number of records returned in the message. The subsequent request for additional records should have a rsstart value of rscount + 1. o rstotal attribute is a number that indicates the total number of records in the result set. o rscomplete attribute is a Boolean that indicates that the list provided exhaust the possible values. o rsref attribute is a string that represents the implementation-specific result set identifier for subsequent requests.

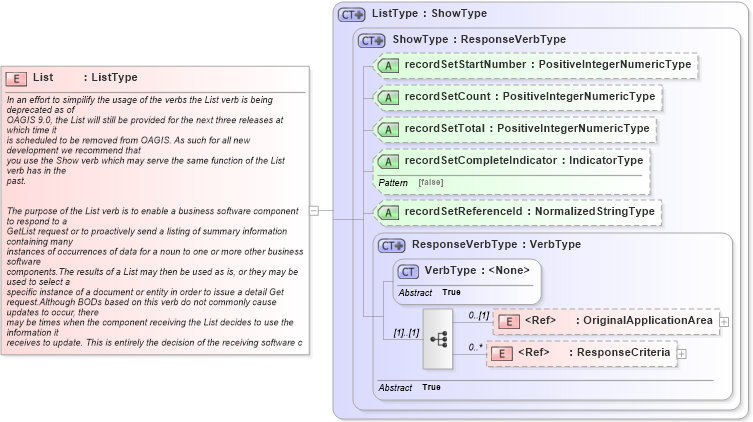

Collapse XSD Schema Diagram:
Drilldown into ResponseCriteria in schema meta_xsd1 Drilldown into OriginalApplicationArea in schema meta_xsd1 Drilldown into VerbType in schema meta_xsd1 Drilldown into ResponseVerbType in schema meta_xsd1 Drilldown into recordSetReferenceId in schema meta_xsd1 Drilldown into recordSetCompleteIndicator in schema meta_xsd1 Drilldown into recordSetTotal in schema meta_xsd1 Drilldown into recordSetCount in schema meta_xsd1 Drilldown into recordSetStartNumber in schema meta_xsd1 Drilldown into ShowType in schema meta_xsd1 Drilldown into ListType in schema meta_xsd1XSD Diagram of List in schema meta_xsd1 (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:element name="List" type="ListType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9.0">
            In an effort to simpilify the usage of the verbs the List verb is being deprecated as of
            OAGIS 9.0, the List will still be provided for the next three releases at which time it
            is scheduled to be removed from OAGIS. As such for all new development we recommend that
            you use the Show verb which may serve the same function of the List verb has in the
            past.


            The purpose of the List verb is to enable a business software component to respond to a
            GetList request or to proactively send a listing of summary information containing many
            instances of occurrences of data for a noun to one or more other business software
            components.The results of a List may then be used as is, or they may be used to select a
            specific instance of a document or entity in order to issue a detail Get
            request.Although BODs based on this verb do not commonly cause updates to occur, there
            may be times when the component receiving the List decides to use the information it
            receives to update. This is entirely the decision of the receiving software component
            and is not forbidden.The behavior of the List verb is quite straight forward with a few
            exceptions. The List response to any GetList request needs to read the request carefully
            to ensure the response is returning the requested Data Types. The List needs to ensure
            the response to the GetList does not exceed the maxItems value.The List needs to find
            the specific Field Identifiers that are used for the Field-Based Selection or
            Range-Based Selection and process them accordingly.

            The attributes associated with the List BODs are as follows: o rsstart attribute is a
            number that idicates the starting record for the section of the resulting set returned
            in the list message. This value should always match the rsstart value in the originating
            GetList BOD. o rscount attribute is a number that indicates the number of records
            returned in the message. The subsequent request for additional records should have a
            rsstart value of rscount + 1. o rstotal attribute is a number that indicates the total
            number of records in the result set. o rscomplete attribute is a Boolean that indicates
            that the list provided exhaust the possible values. o rsref attribute is a string that
            represents the implementation-specific result set identifier for subsequent requests.
         </xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
OriginalApplicationArea oagis:OriginalApplicationArea 0 (1)
ResponseCriteria oagis:ResponseCriteria 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
recordSetStartNumber oagis:recordSetStartNumber Optional
recordSetCount oagis:recordSetCount Optional
recordSetTotal oagis:recordSetTotal Optional
recordSetCompleteIndicator oagis:recordSetCompleteIndicator Optional
recordSetReferenceId oagis:recordSetReferenceId Optional
Collapse Derivation Tree:
