Documentation for Standards for Technology in Automotive Retail
Definition Type: Element
Name: LoadingLocation
Namespace: http://www.openapplications.org/oagis/9
Type: oagis:LocationType
Containing Schema: Components.xsd
Abstract
Documentation:
Identifies the location that shipped goods are to be loaded.

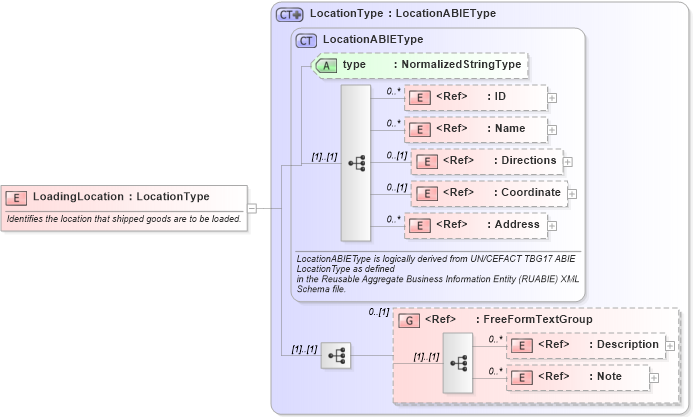

Collapse XSD Schema Diagram:
Drilldown into Note in schema fields_xsd1 Drilldown into Description in schema fields_xsd1 Drilldown into FreeFormTextGroup in schema meta_xsd1 Drilldown into Address in schema components_xsd1 Drilldown into Coordinate in schema components_xsd1 Drilldown into Directions in schema fields_xsd1 Drilldown into Name in schema fields_xsd1 Drilldown into ID in schema fields_xsd1 Drilldown into type in schema components_xsd1 Drilldown into LocationABIEType in schema components_xsd1 Drilldown into LocationType in schema components_xsd1XSD Diagram of LoadingLocation in schema components_xsd1 (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:element name="LoadingLocation" type="LocationType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">
            Identifies the location that shipped goods are to be loaded.
         </xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ID oagis:ID 0 unbounded
Name oagis:Name 0 unbounded
Directions oagis:Directions 0 (1)
Coordinate oagis:Coordinate 0 (1)
Address oagis:Address 0 unbounded
Description oagis:Description 0 unbounded
Note oagis:Note 0 unbounded
<xs:group> oagis:FreeFormTextGroup 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
type oagis:type (Optional)
Collapse Derivation Tree:
