Documentation for Standards for Technology in Automotive Retail
Definition Type: ComplexType
Name: LocationABIEType
Namespace: http://www.starstandard.org/STAR/5
Containing Schema: Components.xsd
Abstract
Documentation:
A physical location or place

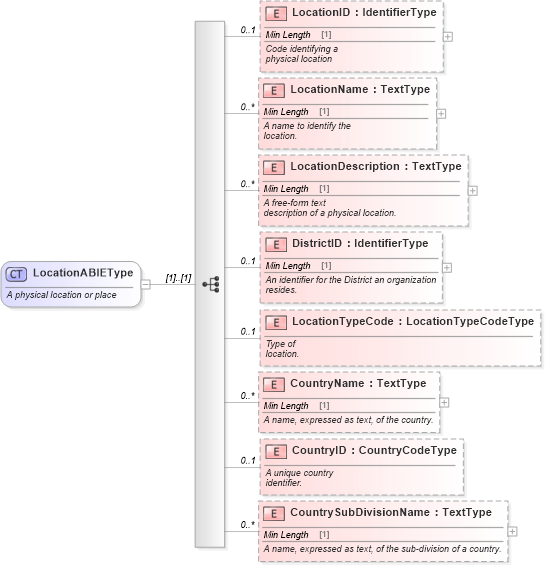

Collapse XSD Schema Diagram:
Drilldown into CountrySubDivisionName in schema components_xsd Drilldown into CountryID in schema components_xsd Drilldown into CountryName in schema components_xsd Drilldown into LocationTypeCode in schema components_xsd Drilldown into DistrictID in schema components_xsd Drilldown into LocationDescription in schema components_xsd Drilldown into LocationName in schema components_xsd Drilldown into LocationID in schema components_xsdXSD Diagram of LocationABIEType in schema components_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:complexType name="LocationABIEType">
    <xsd:annotation>
        <xsd:documentation>A physical location or place</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element maxOccurs="1" minOccurs="0" name="LocationID" type="udt:IdentifierType">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Code identifying a
                physical location</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="unbounded" minOccurs="0" name="LocationName" type="udt:TextType">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/STAR/5">A name to identify the
                location.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="unbounded" minOccurs="0" name="LocationDescription" type="udt:TextType">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/STAR/5">A free-form text
                description of a physical location.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="1" minOccurs="0" name="DistrictID" type="udt:IdentifierType">
            <xsd:annotation>
                <xsd:documentation>An identifier for the District an organization
            resides.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="1" minOccurs="0" name="LocationTypeCode" type="sqdt:LocationTypeCodeType">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Type of
            location.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="unbounded" minOccurs="0" name="CountryName" type="udt:TextType">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/STAR/5">
               A name, expressed as text, of the country.
            </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="1" minOccurs="0" name="CountryID" type="sqdt:CountryCodeType">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/STAR/5"> A unique country
                identifier. </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="unbounded" minOccurs="0" name="CountrySubDivisionName" type="udt:TextType">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/STAR/5">
               A name, expressed as text, of the sub-division of a country.
            </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
LocationID star:LocationID 0 1
LocationName star:LocationName 0 unbounded
LocationDescription star:LocationDescription 0 unbounded
DistrictID star:DistrictID 0 1
LocationTypeCode star:LocationTypeCode 0 1
CountryName star:CountryName 0 unbounded
CountryID star:CountryID 0 1
CountrySubDivisionName star:CountrySubDivisionName 0 unbounded
Collapse Derivation Tree:
Collapse References:
star:ApplicableLocation
