Documentation for Standards for Technology in Automotive Retail
Definition Type: ComplexType
Name: Manifest
Namespace: http://www.starstandards.org/webservices/2009/transport
Containing Schema: STARWSDLDataTypes4.xsd
Abstract
Documentation:
The manifest provides an easy and fast way to identify the type of data in the message without parsing the whole message. This is useful for implementations that make routing decisions based on the contents of the message. And, it’s especially useful if the body of the message is encrypted.

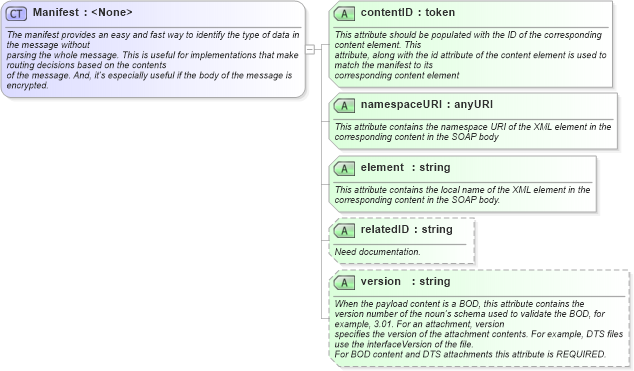

Collapse XSD Schema Diagram:
Drilldown into version in schema starwsdldatatypes4_xsd Drilldown into relatedID in schema starwsdldatatypes4_xsd Drilldown into element in schema starwsdldatatypes4_xsd Drilldown into namespaceURI in schema starwsdldatatypes4_xsd Drilldown into contentID in schema starwsdldatatypes4_xsdXSD Diagram of Manifest in schema starwsdldatatypes4_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:complexType name="Manifest">
    <xsd:annotation>
        <xsd:documentation> The manifest provides an easy and fast way to identify the type of data in the message without
        parsing the whole message. This is useful for implementations that make routing decisions based on the contents
        of the message. And, it’s especially useful if the body of the message is encrypted.</xsd:documentation>
    </xsd:annotation>
    <xsd:attribute name="contentID" type="xsd:token" use="required">
        <xsd:annotation>
            <xsd:documentation> This attribute should be populated with the ID of the corresponding content element. This
          attribute, along with the id attribute of the content element is used to match the manifest to its
          corresponding content element</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="namespaceURI" type="xsd:anyURI" use="required">
        <xsd:annotation>
            <xsd:documentation source="http://www.starstandard.org"> This attribute contains the namespace URI of the XML element in the
          corresponding content in the SOAP body</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="element" type="xsd:string" use="required">
        <xsd:annotation>
            <xsd:documentation source="http://www.starstandard.org"> This attribute contains the local name of the XML element in the
          corresponding content in the SOAP body.</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="relatedID" type="xsd:string" use="optional">
        <xsd:annotation>
            <xsd:documentation source="http://www.starstandard.org"> Need documentation.</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="version" type="xsd:string" use="optional">
        <xsd:annotation>
            <xsd:documentation source="http://www.starstandard.org"> When the payload content is a BOD, this attribute contains the
          version number of the noun’s schema used to validate the BOD, for example, 3.01. For an attachment, version
          specifies the version of the attachment contents. For example, DTS files use the interfaceVersion of the file.
          For BOD content and DTS attachments this attribute is REQUIRED.</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Attributes:
Name Type Default Value Use
contentID starws:contentID Required
namespaceURI starws:namespaceURI Required
element starws:element Required
relatedID starws:relatedID Optional
version starws:version Optional
Collapse Derivation Tree:
Collapse References:
starws:manifest
