Documentation for Standards for Technology in Automotive Retail
Definition Type: ComplexType
Name: MarketingInitiativesVSType
Namespace: http://www.starstandard.org/STAR/5
Type: star:MarketingInitiativesVOType
Containing Schema: Components.xsd
Abstract

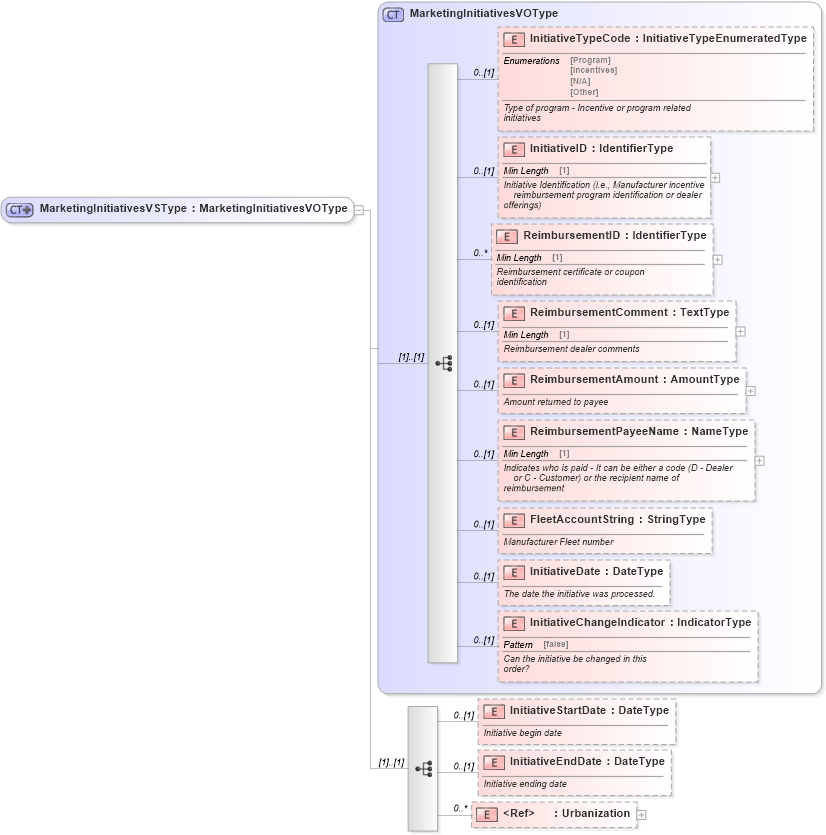

Collapse XSD Schema Diagram:
Drilldown into Urbanization in schema components_xsd Drilldown into InitiativeEndDate in schema components_xsd Drilldown into InitiativeStartDate in schema components_xsd Drilldown into InitiativeChangeIndicator in schema components_xsd Drilldown into InitiativeDate in schema components_xsd Drilldown into FleetAccountString in schema components_xsd Drilldown into ReimbursementPayeeName in schema components_xsd Drilldown into ReimbursementAmount in schema components_xsd Drilldown into ReimbursementComment in schema components_xsd Drilldown into ReimbursementID in schema components_xsd Drilldown into InitiativeID in schema components_xsd Drilldown into InitiativeTypeCode in schema components_xsd Drilldown into MarketingInitiativesVOType in schema components_xsdXSD Diagram of MarketingInitiativesVSType in schema components_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:complexType name="MarketingInitiativesVSType">
    <xsd:complexContent>
        <xsd:extension base="MarketingInitiativesVOType">
            <xsd:sequence>
                <xsd:element minOccurs="0" name="InitiativeStartDate" type="udt:DateType">
                    <xsd:annotation>
                        <xsd:documentation>
                                Initiative begin date
                            </xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element minOccurs="0" name="InitiativeEndDate" type="udt:DateType">
                    <xsd:annotation>
                        <xsd:documentation>
                                Initiative ending date
                            </xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element maxOccurs="unbounded" minOccurs="0" ref="Urbanization">
                    <xsd:annotation>
                        <xsd:documentation>
                                Urbanization/region Initiative
                                information
                            </xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
InitiativeTypeCode star:InitiativeTypeCode 0 (1)
InitiativeID star:InitiativeID 0 (1)
ReimbursementID star:ReimbursementID 0 unbounded
ReimbursementComment star:ReimbursementComment 0 (1)
ReimbursementAmount star:ReimbursementAmount 0 (1)
ReimbursementPayeeName star:ReimbursementPayeeName 0 (1)
FleetAccountString star:FleetAccountString 0 (1)
InitiativeDate star:InitiativeDate 0 (1)
InitiativeChangeIndicator star:InitiativeChangeIndicator 0 (1)
InitiativeStartDate star:InitiativeStartDate 0 (1)
InitiativeEndDate star:InitiativeEndDate 0 (1)
Urbanization star:Urbanization 0 unbounded
Collapse Derivation Tree:
Collapse References:
star:MarketingInitiativesVS
