Definition Type:	ComplexType
Name:	MeasureType
Namespace:	http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1
Type:	decimal:http://www.w3.org/2001/XMLSchema
Containing Schema:	UnqualifiedDataTypes.xsd
Abstract
Documentation:	UDT0000013 UDT Measure. Type 1.0 A numeric value determined by measuring an object along with the specified unit of measure. Measure Type decimal

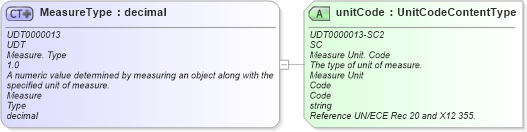

XSD Schema Diagram:

XSD Diagram of MeasureType in schema unqualifieddatatypes_xsd (Standards for Technology in Automotive Retail)

XSD Schema Code:

<xsd:complexType name="MeasureType">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">
            <ccts:UniqueID xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">UDT0000013</ccts:UniqueID>
            <ccts:CategoryCode xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">UDT</ccts:CategoryCode>
            <ccts:DictionaryEntryName xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Measure. Type</ccts:DictionaryEntryName>
            <ccts:VersionID xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">1.0</ccts:VersionID>
            <ccts:Definition xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">A numeric value determined by measuring an object along with the specified unit of measure.</ccts:Definition>
            <ccts:RepresentationTermName xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Measure</ccts:RepresentationTermName>
            <ccts:PropertyTermName xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Type</ccts:PropertyTermName>
            <ccts:PrimitiveType xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">decimal</ccts:PrimitiveType>
        </xsd:documentation>
    </xsd:annotation>
    <xsd:simpleContent>
        <xsd:extension base="xsd:decimal">
            <xsd:attribute name="unitCode" type="oacl:UnitCodeContentType" use="required">
                <xsd:annotation>
                    <xsd:documentation xml:lang="en">
                        <ccts:UniqueID xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">UDT0000013-SC2</ccts:UniqueID>
                        <ccts:CategoryCode xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">SC</ccts:CategoryCode>
                        <ccts:DictionaryEntryName xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Measure Unit. Code</ccts:DictionaryEntryName>
                        <ccts:Definition xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">The type of unit of measure.</ccts:Definition>
                        <ccts:ObjectClass xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Measure Unit</ccts:ObjectClass>
                        <ccts:PropertyTermName xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Code</ccts:PropertyTermName>
                        <ccts:RepresentationTermName xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Code</ccts:RepresentationTermName>
                        <ccts:PrimitiveType xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">string</ccts:PrimitiveType>
                        <ccts:UsageRule xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Reference UN/ECE Rec 20 and X12 355.</ccts:UsageRule>
                    </xsd:documentation>
                </xsd:annotation>
            </xsd:attribute>
        </xsd:extension>
    </xsd:simpleContent>
</xsd:complexType>

Child Attributes:
