Documentation for Standards for Technology in Automotive Retail
Definition Type: ComplexType
Name: MessageType
Namespace: http://www.starstandard.org/STAR/5
Containing Schema: Meta.xsd
Abstract
Collapse XSD Schema Diagram:

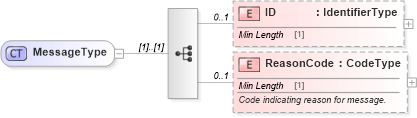

Drilldown into ReasonCode in schema meta_xsd Drilldown into ID in schema meta_xsdXSD Diagram of MessageType in schema meta_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:complexType name="MessageType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplication.org" />
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element maxOccurs="1" minOccurs="0" name="ID" type="udt:IdentifierType">
            <xsd:annotation>
                <xsd:documentation source="http://www.openapplication.org" />
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="1" minOccurs="0" name="ReasonCode" type="udt:CodeType">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/">Code indicating reason for message.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ID star:ID 0 1
ReasonCode star:ReasonCode 0 1
