Documentation for Standards for Technology in Automotive Retail
Definition Type: Element
Name: ModelCodesHeader
Namespace: http://www.starstandard.org/STAR/5
Type: star:ModelCodesHeaderType
Containing Schema: ModelCodes.xsd
Abstract
Documentation:
For each ModelCodes represented in the DataArea of the ModelCodes Business Object Document, there must be once occurrence of the Header Component.

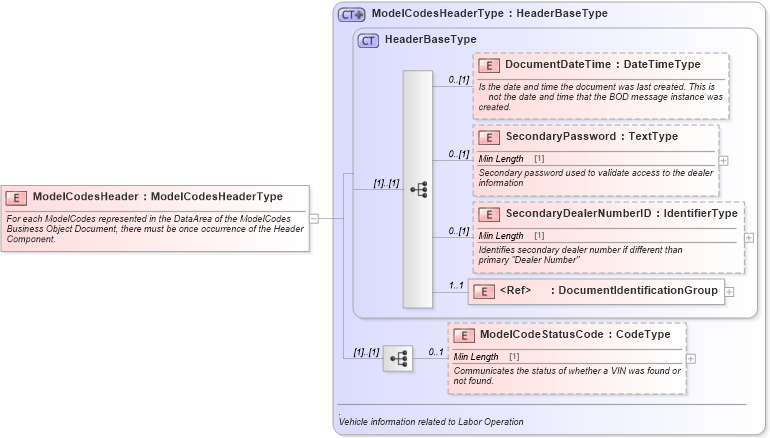

Collapse XSD Schema Diagram:
Drilldown into ModelCodeStatusCode in schema modelcodes_xsd Drilldown into DocumentIdentificationGroup in schema components_xsd Drilldown into SecondaryDealerNumberID in schema components_xsd Drilldown into SecondaryPassword in schema components_xsd Drilldown into DocumentDateTime in schema components_xsd Drilldown into HeaderBaseType in schema components_xsd Drilldown into ModelCodesHeaderType in schema modelcodes_xsdXSD Diagram of ModelCodesHeader in schema modelcodes_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:element name="ModelCodesHeader" type="ModelCodesHeaderType">
    <xsd:annotation>
        <xsd:documentation source="http://www.starstandard.org/STAR/5"> For each ModelCodes represented in the DataArea of the ModelCodes
            Business Object Document, there must be once occurrence of the Header Component.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DocumentDateTime star:DocumentDateTime 0 (1)
SecondaryPassword star:SecondaryPassword 0 (1)
SecondaryDealerNumberID star:SecondaryDealerNumberID 0 (1)
DocumentIdentificationGroup star:DocumentIdentificationGroup 1 1
ModelCodeStatusCode star:ModelCodeStatusCode 0 1
Collapse Derivation Tree:
