Documentation for Standards for Technology in Automotive Retail
Definition Type: Element
Name: ModelCodesVehicleLineItem
Namespace: http://www.starstandard.org/STAR/5
Type: star:ModelCodesVehicleLineItemType
Containing Schema: ModelCodes.xsd
Abstract
Documentation:
Detail information regarding a particular vehicle.

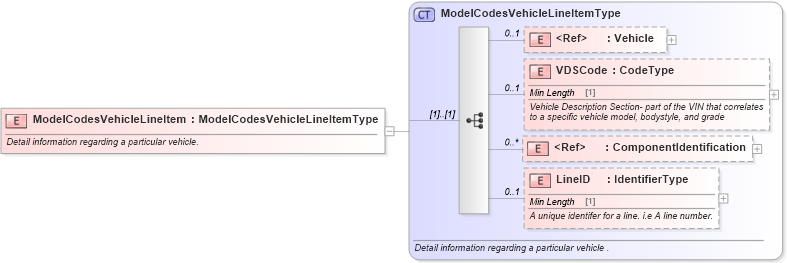

Collapse XSD Schema Diagram:
Drilldown into LineID in schema modelcodes_xsd Drilldown into ComponentIdentification in schema components_xsd Drilldown into VDSCode in schema modelcodes_xsd Drilldown into Vehicle in schema components_xsd Drilldown into ModelCodesVehicleLineItemType in schema modelcodes_xsdXSD Diagram of ModelCodesVehicleLineItem in schema modelcodes_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:element name="ModelCodesVehicleLineItem" type="ModelCodesVehicleLineItemType">
    <xsd:annotation>
        <xsd:documentation source="http://www.starstandard.org/STAR/5"> Detail information regarding a particular vehicle.
         </xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Vehicle star:Vehicle 0 1
VDSCode star:VDSCode 0 1
ComponentIdentification star:ComponentIdentification 0 unbounded
LineID star:LineID 0 1
Collapse Derivation Tree:
