Definition Type: ComplexType
Name: ModelCodesVehicleType
Namespace: http://www.starstandard.org/STAR/5
Type: star:VehicleType
Containing Schema: DeprecatedComponents.xsd
Abstract
Documentation:
Deprecated: Use VehicleABIEType

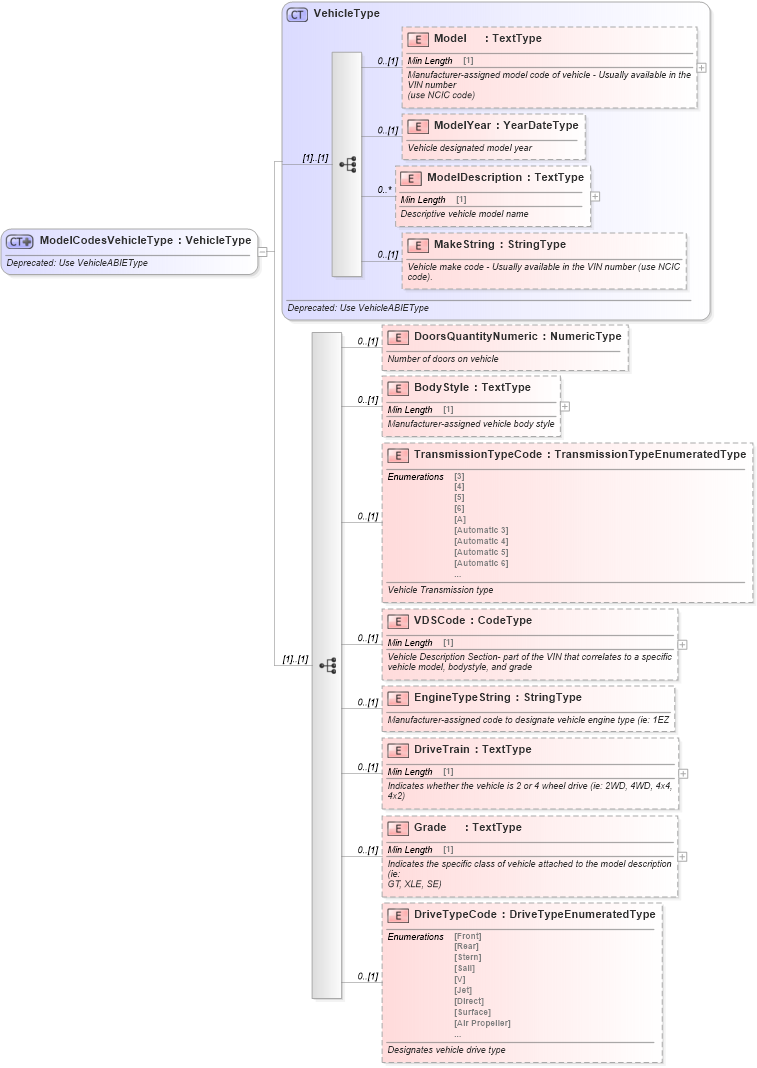

Collapse XSD Schema Diagram:
Drilldown into DriveTypeCode in schema deprecatedcomponents_xsd Drilldown into Grade in schema deprecatedcomponents_xsd Drilldown into DriveTrain in schema deprecatedcomponents_xsd Drilldown into EngineTypeString in schema deprecatedcomponents_xsd Drilldown into VDSCode in schema deprecatedcomponents_xsd Drilldown into TransmissionTypeCode in schema deprecatedcomponents_xsd Drilldown into BodyStyle in schema deprecatedcomponents_xsd Drilldown into DoorsQuantityNumeric in schema deprecatedcomponents_xsd Drilldown into MakeString in schema deprecatedcomponents_xsd Drilldown into ModelDescription in schema deprecatedcomponents_xsd Drilldown into ModelYear in schema deprecatedcomponents_xsd Drilldown into Model in schema deprecatedcomponents_xsd Drilldown into VehicleType in schema deprecatedcomponents_xsdXSD Diagram of ModelCodesVehicleType in schema deprecatedcomponents_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:complexType name="ModelCodesVehicleType">
    <xsd:annotation>
        <xsd:documentation>Deprecated: Use VehicleABIEType</xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="VehicleType">
            <xsd:sequence>
                <xsd:element minOccurs="0" name="DoorsQuantityNumeric" type="udt:NumericType">
                    <xsd:annotation>
                        <xsd:documentation>
                            <ccts:Definition xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Number of doors on vehicle</ccts:Definition>
                        </xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element minOccurs="0" name="BodyStyle" type="udt:TextType">
                    <xsd:annotation>
                        <xsd:documentation>
                            <ccts:Definition xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Manufacturer-assigned vehicle body style</ccts:Definition>
                        </xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element minOccurs="0" name="TransmissionTypeCode" type="scl:TransmissionTypeEnumeratedType">
                    <xsd:annotation>
                        <xsd:documentation>
                            <ccts:Definition xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Vehicle Transmission type</ccts:Definition>
                        </xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element minOccurs="0" name="VDSCode" type="udt:CodeType">
                    <xsd:annotation>
                        <xsd:documentation>
                            <ccts:Definition xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Vehicle Description Section- part of the VIN that correlates to a specific
                           vehicle model, bodystyle, and grade</ccts:Definition>
                        </xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element minOccurs="0" name="EngineTypeString" type="qdt:StringType">
                    <xsd:annotation>
                        <xsd:documentation>
                            <ccts:Definition xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Manufacturer-assigned code to designate vehicle engine type (ie: 1EZ</ccts:Definition>
                        </xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element minOccurs="0" name="DriveTrain" type="udt:TextType">
                    <xsd:annotation>
                        <xsd:documentation>
                            <ccts:Definition xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Indicates whether the vehicle is 2 or 4 wheel drive (ie: 2WD, 4WD, 4x4, 4x2)</ccts:Definition>
                        </xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element minOccurs="0" name="Grade" type="udt:TextType">
                    <xsd:annotation>
                        <xsd:documentation>
                            <ccts:Definition xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Indicates the specific class of vehicle attached to the model description (ie:
                           GT, XLE, SE)</ccts:Definition>
                        </xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element minOccurs="0" name="DriveTypeCode" type="scl:DriveTypeEnumeratedType">
                    <xsd:annotation>
                        <xsd:documentation>
                            <ccts:Definition xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Designates vehicle drive type</ccts:Definition>
                        </xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Model star:Model 0 (1)
ModelYear star:ModelYear 0 (1)
ModelDescription star:ModelDescription 0 unbounded
MakeString star:MakeString 0 (1)
DoorsQuantityNumeric star:DoorsQuantityNumeric 0 (1)
BodyStyle star:BodyStyle 0 (1)
TransmissionTypeCode star:TransmissionTypeCode 0 (1)
VDSCode star:VDSCode 0 (1)
EngineTypeString star:EngineTypeString 0 (1)
DriveTrain star:DriveTrain 0 (1)
Grade star:Grade 0 (1)
DriveTypeCode star:DriveTypeCode 0 (1)
Collapse Derivation Tree:
Collapse References:
star:ModelCodesVehicle
